SDO HMI 2014-09-17 21:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.13 | 37.16 | 14.35 | 30.90 | -21.02 | 311.75 | -46.20 | 122.98 | 0.8047 | -233.8 | -64.0 | |
|
previous
or next observation for the same group /

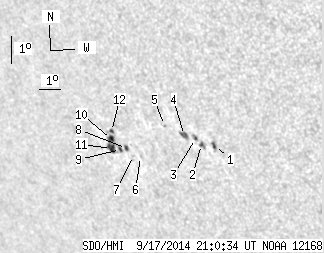

back to the solar disc SDO HMI 2014-09-17 21:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.51 | 3.10 | 1.18 | 2.43 | -20.83 | 314.94 | -43.01 | 124.50 | 0.7759 | 736.1 | 584.8 | |
| 0.98 | 3.55 | 0.77 | 2.80 | -20.85 | 314.36 | -43.60 | 124.18 | 0.7812 | 694.9 | 448.3 | |
| 0.80 | 2.57 | 0.63 | 2.04 | -20.67 | 314.16 | -43.80 | 123.86 | 0.7821 | 691.2 | 539.3 | |
| 2.31 | 5.15 | 1.84 | 4.10 | -20.61 | 313.68 | -44.27 | 123.52 | 0.7860 | 538.9 | 253.2 | |
| 0.00 | 1.06 | 0.00 | 0.86 | -20.35 | 312.87 | -45.08 | 122.78 | 0.7920 | 463.0 | 293.3 | |
| 0.00 | 0.44 | 0.00 | 0.37 | -21.54 | 311.28 | -46.68 | 123.27 | 0.8115 | -622.0 | -615.0 | |
| 0.00 | 0.98 | 0.00 | 0.83 | -21.54 | 310.95 | -47.01 | 123.09 | 0.8143 | -680.0 | -577.7 | |
| 1.24 | 2.48 | 1.06 | 2.11 | -21.33 | 310.70 | -47.25 | 122.74 | 0.8154 | -613.7 | -537.0 | |
| 0.98 | 15.17 | 0.84 | 13.08 | -21.39 | 310.39 | -47.57 | 122.65 | 0.8184 | -488.2 | -443.9 | |
| 3.73 | -9.00 | 3.21 | -9.00 | -21.08 | 310.09 | -47.87 | 122.16 | 0.8195 | -686.8 | 999999 | |
| 4.52 | -9.00 | 3.91 | -9.00 | -21.40 | 309.95 | -48.01 | 122.44 | 0.8221 | -554.0 | 999999 | |
| 1.06 | 2.66 | 0.91 | 2.28 | -20.80 | 310.21 | -47.75 | 121.91 | 0.8173 | -677.7 | -535.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
