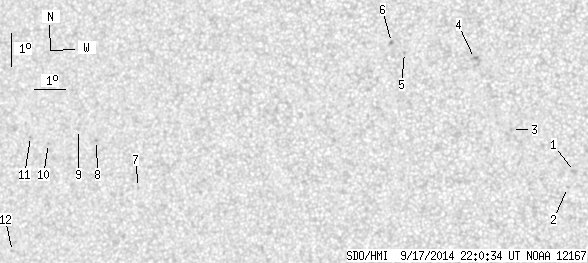

SDO HMI 2014-09-17 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.61 | 0.00 | 8.30 | 8.28 | 337.16 | -20.24 | 84.61 | 0.3442 | -92.8 | -233.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-17 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.66 | 0.00 | 1.35 | 7.27 | 344.94 | -12.46 | 88.78 | 0.2151 | -1048.0 | -661.1 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 6.78 | 344.74 | -12.67 | 91.01 | 0.2187 | -752.0 | -599.0 | |
| 0.00 | 0.98 | 0.00 | 0.50 | 8.48 | 342.94 | -14.47 | 83.84 | 0.2497 | -920.0 | -698.6 | |
| 0.00 | 2.75 | 0.00 | 1.42 | 10.58 | 341.67 | -15.73 | 76.50 | 0.2753 | -826.0 | -748.0 | |
| 0.00 | 0.98 | 0.00 | 0.51 | 10.68 | 339.42 | -17.98 | 77.51 | 0.3121 | -848.0 | -655.2 | |
| 0.00 | 1.86 | 0.00 | 0.97 | 10.97 | 338.99 | -18.42 | 76.85 | 0.3199 | -872.0 | -722.1 | |
| 0.00 | 0.71 | 0.00 | 0.39 | 6.22 | 330.92 | -26.49 | 90.46 | 0.4452 | 649.0 | 519.8 | |
| 0.00 | 1.06 | 0.00 | 0.60 | 7.55 | 329.40 | -28.00 | 87.40 | 0.4678 | 832.0 | 682.4 | |
| 0.00 | 0.62 | 0.00 | 0.35 | 7.85 | 328.76 | -28.65 | 86.75 | 0.4776 | 593.0 | 497.3 | |
| 0.00 | 0.80 | 0.00 | 0.45 | 7.37 | 327.75 | -29.66 | 87.71 | 0.4931 | 688.0 | 597.8 | |
| 0.00 | 0.98 | 0.00 | 0.56 | 7.54 | 327.10 | -30.30 | 87.33 | 0.5027 | 664.0 | 506.4 | |
| 0.00 | 1.15 | 0.00 | 0.66 | 4.04 | 326.67 | -30.73 | 94.17 | 0.5131 | 726.0 | 575.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
