SDO HMI 2014-09-17 23:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.16 | 104.86 | 2.08 | 52.57 | 12.82 | 352.42 | -4.43 | 277.35 | 0.1373 | -355.4 | -365.7 | |
|
previous
or next observation for the same group /

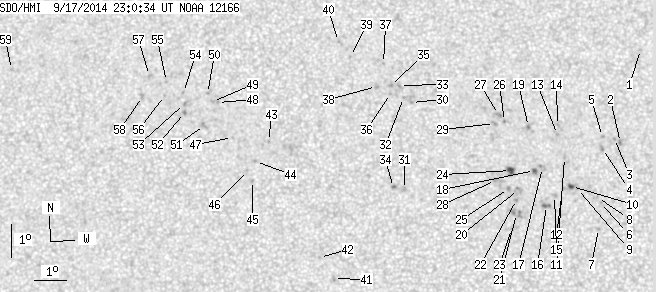

back to the solar disc SDO HMI 2014-09-17 23:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.42 | 0.00 | 0.71 | 15.91 | 359.08 | 2.22 | 346.20 | 0.1572 | -653.0 | -494.1 | |
| 0.00 | 1.86 | 0.00 | 0.93 | 13.09 | 358.43 | 1.57 | 345.46 | 0.1070 | -1002.0 | -896.3 | |
| 0.00 | 0.89 | 0.00 | 0.44 | 13.21 | 358.24 | 1.39 | 347.36 | 0.1083 | -948.0 | -819.6 | |
| 0.00 | 2.48 | 0.00 | 1.24 | 12.91 | 357.87 | 1.02 | 350.19 | 0.1019 | -962.0 | -761.7 | |
| 0.00 | 1.33 | 0.00 | 0.66 | 13.27 | 357.87 | 1.02 | 350.76 | 0.1081 | -882.0 | -718.5 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 11.27 | 357.80 | 0.95 | 347.25 | 0.0737 | -794.0 | -570.5 | |
| 0.00 | 1.33 | 0.00 | 0.66 | 10.49 | 357.73 | 0.88 | 345.36 | 0.0601 | -694.0 | -466.1 | |
| 0.00 | 0.98 | 0.00 | 0.48 | 11.43 | 357.71 | 0.85 | 348.86 | 0.0760 | -864.0 | -621.4 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 11.70 | 357.09 | 0.24 | 357.02 | 0.0794 | -816.0 | -661.0 | |
| 1.06 | 2.57 | 0.53 | 1.28 | 11.76 | 356.91 | 0.06 | 359.32 | 0.0804 | -1166.2 | -980.0 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 12.64 | 356.69 | -0.16 | 1.63 | 0.0957 | -860.0 | -706.1 | |
| 0.00 | 0.89 | 0.00 | 0.44 | 11.70 | 356.63 | -0.22 | 2.74 | 0.0794 | -635.0 | -591.0 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 13.33 | 356.48 | -0.37 | 3.40 | 0.1080 | -929.0 | -791.8 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 13.61 | 356.48 | -0.38 | 3.25 | 0.1127 | -556.0 | -533.2 | |
| 0.00 | 2.40 | 0.00 | 1.19 | 11.49 | 356.39 | -0.47 | 6.06 | 0.0760 | -905.0 | -756.2 | |
| 0.00 | 3.64 | 0.00 | 1.81 | 11.19 | 356.14 | -0.71 | 9.88 | 0.0714 | -1152.0 | -988.5 | |
| 0.00 | 3.37 | 0.00 | 1.68 | 12.33 | 356.02 | -0.84 | 9.01 | 0.0915 | -829.0 | -819.4 | |
| 0.62 | 2.31 | 0.31 | 1.15 | 12.24 | 355.77 | -1.08 | 11.80 | 0.0907 | -1160.1 | -928.0 | |
| 0.00 | 1.60 | 0.00 | 0.80 | 13.57 | 355.58 | -1.27 | 10.96 | 0.1141 | -1086.0 | -938.4 | |
| 0.00 | 3.99 | 0.00 | 1.98 | 11.67 | 355.28 | -1.57 | 18.93 | 0.0833 | -866.0 | -774.1 | |
| 0.00 | 6.92 | 0.00 | 3.44 | 10.94 | 355.22 | -1.63 | 23.02 | 0.0719 | -439.0 | -843.0 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 11.37 | 355.22 | -1.63 | 20.91 | 0.0787 | -1163.0 | -1001.4 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 10.49 | 355.07 | -1.78 | 27.84 | 0.0658 | -806.0 | -621.5 | |
| 2.48 | 4.79 | 1.24 | 2.38 | 12.24 | 355.03 | -1.82 | 19.37 | 0.0942 | -1171.1 | -950.8 | |
| 0.00 | 2.13 | 0.00 | 1.06 | 11.70 | 354.97 | -1.88 | 22.15 | 0.0857 | -1185.0 | -934.9 | |
| 0.00 | 0.89 | 0.00 | 0.44 | 13.72 | 354.83 | -2.02 | 16.68 | 0.1198 | -1025.0 | -886.8 | |
| 0.00 | 2.93 | 0.00 | 1.46 | 13.94 | 354.65 | -2.21 | 17.59 | 0.1242 | -859.0 | -799.0 | |
| 0.00 | 1.77 | 0.00 | 0.88 | 11.94 | 354.57 | -2.28 | 25.11 | 0.0923 | -928.0 | -800.0 | |
| 0.00 | 2.57 | 0.00 | 1.28 | 13.66 | 354.52 | -2.33 | 19.23 | 0.1204 | -1022.0 | -682.1 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 14.28 | 351.93 | -4.92 | 33.77 | 0.1501 | -899.0 | -657.7 | |
| 0.00 | 1.86 | 0.00 | 0.93 | 11.65 | 351.77 | -5.09 | 47.87 | 0.1176 | -913.0 | -746.2 | |
| 0.00 | 0.80 | 0.00 | 0.40 | 14.43 | 351.68 | -5.17 | 34.53 | 0.1547 | -756.0 | -531.4 | |
| 0.00 | 1.69 | 0.00 | 0.85 | 14.80 | 351.55 | -5.30 | 33.87 | 0.1611 | -993.0 | -788.8 | |
| 0.00 | 1.60 | 0.00 | 0.80 | 11.70 | 351.43 | -5.43 | 49.32 | 0.1226 | -975.0 | -808.8 | |
| 0.00 | 1.86 | 0.00 | 0.94 | 14.79 | 351.27 | -5.59 | 35.24 | 0.1638 | -897.0 | -788.6 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 14.55 | 351.27 | -5.58 | 36.12 | 0.1604 | -910.0 | -713.4 | |
| 0.00 | 0.80 | 0.00 | 0.40 | 15.46 | 351.03 | -5.82 | 34.04 | 0.1755 | -870.0 | -700.1 | |
| 0.00 | 2.04 | 0.00 | 1.03 | 14.76 | 350.83 | -6.02 | 37.41 | 0.1678 | -777.0 | -683.6 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 15.66 | 349.99 | -6.87 | 37.79 | 0.1887 | -838.0 | -633.5 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 16.11 | 349.59 | -7.26 | 37.83 | 0.1989 | -778.0 | -584.4 | |
| 0.00 | 1.95 | 0.00 | 0.98 | 8.94 | 349.63 | -7.22 | 75.64 | 0.1288 | 843.0 | 761.0 | |
| 0.00 | 0.89 | 0.00 | 0.44 | 9.56 | 349.19 | -7.67 | 71.96 | 0.1390 | -775.0 | -529.3 | |
| 0.00 | 1.42 | 0.00 | 0.72 | 13.04 | 347.50 | -9.35 | 56.73 | 0.1901 | 863.0 | 636.3 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 12.43 | 347.12 | -9.73 | 60.52 | 0.1905 | 811.0 | 687.5 | |
| 0.00 | 1.42 | 0.00 | 0.72 | 11.85 | 347.05 | -9.81 | 63.44 | 0.1872 | 943.0 | 666.0 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 12.15 | 346.88 | -9.97 | 62.38 | 0.1920 | 866.0 | 667.7 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 13.14 | 346.37 | -10.48 | 59.12 | 0.2074 | 869.0 | 662.4 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 14.19 | 345.85 | -11.00 | 56.10 | 0.2240 | 993.0 | 771.4 | |
| 0.00 | 1.51 | 0.00 | 0.77 | 14.21 | 345.69 | -11.16 | 56.36 | 0.2265 | 883.0 | 751.9 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 14.45 | 345.52 | -11.33 | 55.85 | 0.2310 | 845.0 | 710.4 | |
| 0.00 | 3.11 | 0.00 | 1.58 | 13.48 | 345.47 | -11.38 | 59.67 | 0.2233 | 916.0 | 749.9 | |
| 0.00 | 1.60 | 0.00 | 0.81 | 13.86 | 344.82 | -12.03 | 59.52 | 0.2359 | 1071.0 | 885.9 | |
| 0.00 | 1.69 | 0.00 | 0.86 | 14.13 | 344.81 | -12.05 | 58.53 | 0.2384 | 878.0 | 776.6 | |
| 0.00 | 0.98 | 0.00 | 0.50 | 14.47 | 344.76 | -12.10 | 57.42 | 0.2419 | 975.0 | 801.4 | |
| 0.00 | 0.98 | 0.00 | 0.50 | 14.79 | 344.20 | -12.66 | 57.41 | 0.2526 | 889.0 | 693.0 | |
| 0.00 | 0.80 | 0.00 | 0.41 | 14.36 | 344.16 | -12.70 | 58.97 | 0.2496 | 823.0 | 693.4 | |
| 0.00 | 2.13 | 0.00 | 1.09 | 14.95 | 343.64 | -13.21 | 57.88 | 0.2619 | 834.0 | 662.5 | |
| 0.00 | 2.93 | 0.00 | 1.50 | 14.31 | 343.46 | -13.39 | 60.39 | 0.2593 | 792.0 | 650.5 | |
| 0.00 | 1.24 | 0.00 | 0.65 | 15.00 | 339.17 | -17.68 | 64.19 | 0.3273 | 739.0 | 482.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
