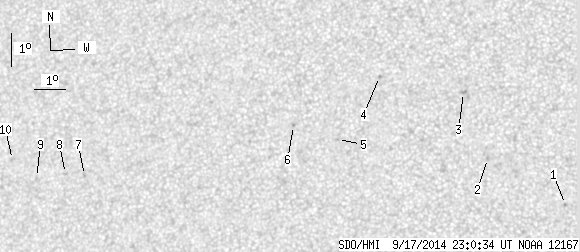

SDO HMI 2014-09-17 23:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.64 | 0.00 | 7.31 | 8.70 | 335.21 | -21.65 | 83.60 | 0.3668 | -261.3 | -181.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-17 23:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.63 | 7.31 | 345.01 | -11.84 | 88.57 | 0.2046 | -898.0 | -718.3 | |
| 0.00 | 1.15 | 0.00 | 0.59 | 8.63 | 342.53 | -14.32 | 83.17 | 0.2474 | -867.0 | -731.8 | |
| 0.00 | 2.13 | 0.00 | 1.09 | 10.60 | 341.69 | -15.16 | 76.02 | 0.2662 | -921.0 | -781.8 | |
| 0.00 | 1.33 | 0.00 | 0.69 | 10.99 | 338.98 | -17.87 | 76.47 | 0.3113 | -820.0 | -687.5 | |
| 0.00 | 1.06 | 0.00 | 0.56 | 9.04 | 337.74 | -19.12 | 83.05 | 0.3272 | -870.0 | -646.9 | |
| 0.00 | 1.06 | 0.00 | 0.56 | 9.40 | 336.29 | -20.57 | 82.31 | 0.3512 | -812.0 | -639.0 | |
| 0.00 | 1.51 | 0.00 | 0.84 | 7.56 | 329.43 | -27.42 | 87.41 | 0.4589 | 792.0 | 544.6 | |
| 0.00 | 1.86 | 0.00 | 1.04 | 7.58 | 328.77 | -28.08 | 87.34 | 0.4690 | 636.0 | 471.6 | |
| 0.00 | 0.44 | 0.00 | 0.25 | 7.40 | 327.78 | -29.07 | 87.67 | 0.4842 | 639.0 | 567.8 | |
| 0.00 | 1.86 | 0.00 | 1.06 | 7.89 | 326.91 | -29.95 | 86.63 | 0.4973 | 508.0 | 481.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
