SDO HMI 2014-09-18 00:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 26.78 | 0.00 | 14.11 | 8.27 | 337.55 | -18.75 | 84.50 | 0.3204 | -294.5 | -329.7 | |
|
previous
or next observation for the same group /

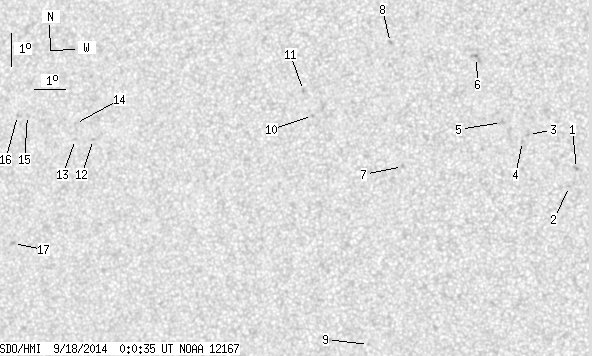

back to the solar disc SDO HMI 2014-09-18 00:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.13 | 0.00 | 1.08 | 7.33 | 345.02 | -11.28 | 88.50 | 0.1950 | -1038.0 | -720.7 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 6.78 | 344.81 | -11.49 | 91.27 | 0.1987 | -943.0 | -705.0 | |
| 0.00 | 1.15 | 0.00 | 0.59 | 8.31 | 343.50 | -12.80 | 84.02 | 0.2215 | -967.0 | -790.7 | |
| 0.00 | 1.33 | 0.00 | 0.68 | 8.10 | 343.32 | -12.98 | 85.04 | 0.2243 | -818.0 | -625.7 | |
| 0.00 | 2.75 | 0.00 | 1.40 | 8.65 | 342.64 | -13.66 | 82.84 | 0.2364 | -796.0 | -690.4 | |
| 0.00 | 5.06 | 0.00 | 2.59 | 10.59 | 341.77 | -14.53 | 75.56 | 0.2558 | -771.0 | -716.0 | |
| 0.00 | 1.24 | 0.00 | 0.64 | 7.23 | 339.57 | -16.73 | 88.75 | 0.2869 | -697.0 | -565.2 | |
| 0.00 | 1.95 | 0.00 | 1.01 | 10.95 | 339.01 | -17.29 | 76.24 | 0.3017 | -939.0 | -693.1 | |
| 0.00 | 0.80 | 0.00 | 0.42 | 1.82 | 338.62 | -17.68 | 106.04 | 0.3173 | -672.0 | -528.3 | |
| 0.00 | 1.24 | 0.00 | 0.65 | 8.66 | 336.63 | -19.68 | 84.32 | 0.3360 | -905.0 | -659.1 | |
| 0.00 | 1.06 | 0.00 | 0.56 | 9.40 | 336.29 | -20.01 | 82.20 | 0.3422 | -811.0 | -703.0 | |
| 0.00 | 1.15 | 0.00 | 0.64 | 7.59 | 329.43 | -26.88 | 87.36 | 0.4504 | 788.0 | 675.1 | |
| 0.00 | 1.15 | 0.00 | 0.64 | 7.55 | 328.81 | -27.49 | 87.42 | 0.4599 | 705.0 | 483.5 | |
| 0.00 | 0.71 | 0.00 | 0.40 | 8.04 | 328.78 | -27.52 | 86.36 | 0.4604 | 776.0 | 646.5 | |
| 0.00 | 1.24 | 0.00 | 0.70 | 8.18 | 327.11 | -29.20 | 86.05 | 0.4859 | 625.0 | 501.4 | |
| 0.00 | 1.15 | 0.00 | 0.66 | 8.16 | 326.76 | -29.54 | 86.10 | 0.4912 | 636.0 | 457.8 | |
| 0.00 | 1.69 | 0.00 | 0.96 | 4.30 | 326.85 | -29.45 | 93.97 | 0.4934 | 821.0 | 668.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
