SDO HMI 2014-09-18 02:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.33 | 173.96 | 42.62 | 209.84 | 7.59 | 288.94 | -66.26 | 84.87 | 0.9122 | -513.0 | -145.2 | |
|
previous
or next observation for the same group /

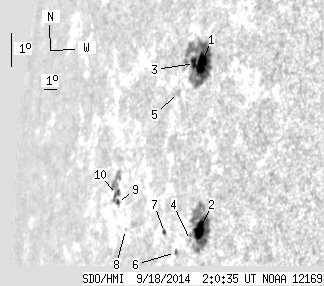

back to the solar disc SDO HMI 2014-09-18 02:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.31 | 83.70 | 15.59 | 98.89 | 10.13 | 289.45 | -65.75 | 82.13 | 0.9079 | -867.1 | -174.6 | |
| 12.43 | 60.89 | 14.09 | 68.96 | 5.18 | 290.73 | -64.47 | 87.70 | 0.9012 | -747.2 | -206.0 | |
| 3.99 | -1.00 | 4.78 | -1.00 | 10.07 | 288.94 | -66.26 | 82.16 | 0.9115 | -234.0 | 999999 | |
| 0.00 | 1.24 | 0.00 | 1.44 | 4.81 | 290.15 | -65.05 | 88.05 | 0.9058 | 93.0 | 124.9 | |
| 0.00 | 2.84 | 0.00 | 3.52 | 9.09 | 288.07 | -67.13 | 83.18 | 0.9180 | 170.0 | 138.8 | |
| 0.00 | 1.95 | 0.00 | 2.35 | 4.33 | 289.13 | -66.07 | 88.46 | 0.9135 | -334.0 | -206.3 | |
| 0.98 | 1.86 | 1.22 | 2.33 | 4.83 | 288.19 | -67.01 | 87.81 | 0.9196 | 384.4 | 443.2 | |
| 0.00 | 0.89 | 0.00 | 1.28 | 4.55 | 284.97 | -70.23 | 87.76 | 0.9403 | 145.0 | 162.5 | |
| 1.51 | 20.59 | 2.26 | 31.07 | 5.26 | 284.06 | -71.14 | 86.91 | 0.9451 | 127.0 | -5.9 | |
| 3.11 | -9.00 | 4.68 | -9.00 | 5.49 | 283.90 | -71.30 | 86.66 | 0.9459 | 89.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
