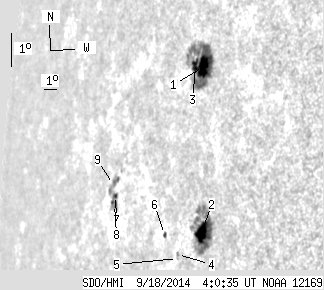

SDO HMI 2014-09-18 04:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.32 | 173.57 | 44.96 | 199.40 | 7.61 | 289.12 | -64.99 | 84.96 | 0.9030 | -561.9 | -146.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-18 04:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.91 | 84.69 | 16.77 | 95.96 | 10.13 | 289.51 | -64.59 | 82.19 | 0.8993 | -866.1 | -186.4 | |
| 14.91 | 66.94 | 16.27 | 72.90 | 5.21 | 290.73 | -63.38 | 87.79 | 0.8928 | -705.7 | -205.7 | |
| 5.24 | -1.00 | 6.01 | -1.00 | 10.07 | 288.95 | -65.15 | 82.23 | 0.9035 | -263.4 | 999999 | |
| 0.00 | 1.60 | 0.00 | 1.85 | 4.37 | 289.19 | -64.92 | 88.55 | 0.9051 | -311.0 | -230.9 | |
| 0.00 | 0.27 | 0.00 | 0.31 | 4.25 | 289.21 | -64.90 | 88.69 | 0.9051 | -331.0 | -278.0 | |
| 0.71 | 1.69 | 0.85 | 2.02 | 4.86 | 288.15 | -65.96 | 87.90 | 0.9123 | 298.0 | 410.8 | |
| 0.89 | 8.79 | 1.26 | 12.55 | 5.56 | 283.97 | -70.13 | 86.70 | 0.9391 | 213.4 | 99.2 | |
| 2.66 | -7.00 | 3.80 | -7.00 | 5.29 | 283.95 | -70.15 | 86.99 | 0.9394 | 131.9 | 999999 | |
| 0.00 | 9.59 | 0.00 | 13.81 | 5.87 | 283.71 | -70.40 | 86.35 | 0.9405 | 259.0 | 142.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
