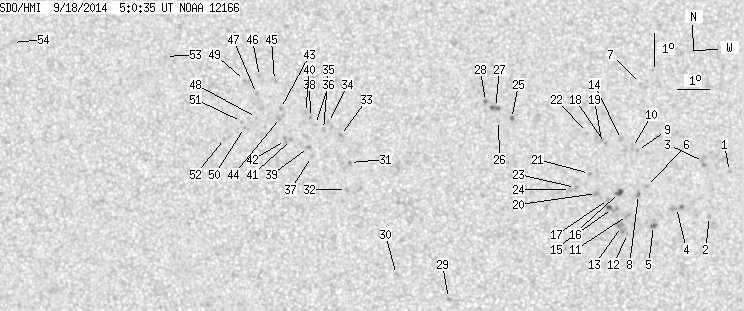

SDO HMI 2014-09-18 05:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.60 | 105.65 | 0.80 | 52.86 | 13.00 | 351.54 | -2.01 | 237.34 | 0.1330 | -109.1 | -294.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-18 05:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.58 | 12.80 | 358.65 | 5.10 | 318.76 | 0.1320 | -814.0 | -628.2 | |
| 0.00 | 1.86 | 0.00 | 0.93 | 11.45 | 358.01 | 4.45 | 314.66 | 0.1075 | -918.0 | -740.0 | |
| 0.00 | 4.17 | 0.00 | 2.08 | 13.12 | 357.85 | 4.30 | 324.97 | 0.1277 | -771.0 | -752.9 | |
| 0.00 | 6.21 | 0.00 | 3.09 | 11.73 | 357.00 | 3.44 | 323.69 | 0.0997 | -847.0 | -870.7 | |
| 0.00 | 2.75 | 0.00 | 1.37 | 11.19 | 356.28 | 2.73 | 326.51 | 0.0849 | -1202.0 | -963.6 | |
| 0.00 | 1.69 | 0.00 | 0.84 | 12.37 | 356.08 | 2.52 | 334.71 | 0.1011 | -1119.0 | -798.3 | |
| 0.00 | 0.89 | 0.00 | 0.44 | 15.50 | 355.93 | 2.37 | 344.63 | 0.1512 | -622.0 | -482.9 | |
| 0.00 | 2.49 | 0.00 | 1.24 | 12.13 | 355.83 | 2.27 | 335.93 | 0.0955 | -1061.0 | -807.6 | |
| 0.00 | 0.80 | 0.00 | 0.40 | 13.47 | 355.81 | 2.26 | 340.80 | 0.1170 | -962.0 | -796.8 | |
| 0.00 | 2.13 | 0.00 | 1.06 | 13.56 | 355.66 | 2.10 | 342.27 | 0.1176 | -954.0 | -758.6 | |
| 0.00 | 2.40 | 0.00 | 1.19 | 11.50 | 355.48 | 1.93 | 336.47 | 0.0830 | -856.0 | -764.3 | |
| 0.00 | 0.89 | 0.00 | 0.44 | 10.96 | 355.48 | 1.92 | 333.56 | 0.0744 | -739.0 | -637.9 | |
| 0.00 | 7.64 | 0.00 | 3.79 | 11.17 | 355.30 | 1.74 | 336.92 | 0.0764 | -933.0 | -895.7 | |
| 0.00 | 2.49 | 0.00 | 1.24 | 13.80 | 355.32 | 1.76 | 345.52 | 0.1201 | -879.0 | -674.7 | |
| 1.60 | 3.73 | 0.80 | 1.86 | 12.20 | 355.24 | 1.69 | 341.85 | 0.0929 | -1192.8 | -924.4 | |
| 0.00 | 5.42 | 0.00 | 2.69 | 11.72 | 355.03 | 1.47 | 342.47 | 0.0837 | -853.0 | -891.4 | |
| 0.00 | 2.40 | 0.00 | 1.19 | 11.99 | 354.90 | 1.35 | 344.71 | 0.0877 | -909.0 | -817.3 | |
| 0.00 | 1.51 | 0.00 | 0.75 | 13.68 | 354.82 | 1.27 | 349.30 | 0.1162 | -1122.0 | -861.0 | |
| 0.00 | 1.60 | 0.00 | 0.80 | 13.77 | 354.70 | 1.14 | 350.46 | 0.1174 | -995.0 | -827.8 | |
| 0.00 | 2.57 | 0.00 | 1.28 | 12.17 | 354.54 | 0.98 | 349.17 | 0.0894 | -1107.0 | -887.3 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 12.78 | 354.32 | 0.77 | 352.41 | 0.0992 | -794.0 | -688.7 | |
| 0.00 | 0.80 | 0.00 | 0.40 | 14.02 | 354.27 | 0.71 | 354.26 | 0.1206 | -1001.0 | -821.7 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 12.35 | 353.89 | 0.33 | 356.42 | 0.0911 | -794.0 | -726.5 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 12.29 | 353.73 | 0.18 | 358.05 | 0.0899 | -899.0 | -749.3 | |
| 0.00 | 1.51 | 0.00 | 0.75 | 14.44 | 351.90 | -1.65 | 12.42 | 0.1305 | -1193.0 | -1023.8 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 14.38 | 351.50 | -2.06 | 15.45 | 0.1311 | -782.0 | -537.1 | |
| 0.00 | 3.82 | 0.00 | 1.91 | 14.78 | 351.40 | -2.15 | 15.32 | 0.1382 | -1035.0 | -985.3 | |
| 0.00 | 1.86 | 0.00 | 0.93 | 14.96 | 351.09 | -2.47 | 17.03 | 0.1427 | -1028.0 | -838.6 | |
| 0.00 | 1.60 | 0.00 | 0.79 | 8.99 | 350.01 | -3.55 | 62.19 | 0.0695 | 946.0 | 669.7 | |
| 0.00 | 2.04 | 0.00 | 1.02 | 9.71 | 348.41 | -5.15 | 63.09 | 0.0997 | -743.0 | -551.5 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 13.07 | 346.89 | -6.67 | 47.45 | 0.1543 | 1005.0 | 800.9 | |
| 0.00 | 1.86 | 0.00 | 0.93 | 12.25 | 346.81 | -6.74 | 52.00 | 0.1463 | 898.0 | 710.3 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 13.89 | 346.58 | -6.97 | 44.95 | 0.1675 | 902.0 | 778.2 | |
| 0.00 | 1.24 | 0.00 | 0.63 | 14.28 | 346.20 | -7.36 | 44.83 | 0.1769 | 733.0 | 702.6 | |
| 0.00 | 2.04 | 0.00 | 1.03 | 14.06 | 346.05 | -7.51 | 46.29 | 0.1762 | 775.0 | 691.1 | |
| 0.00 | 1.07 | 0.00 | 0.54 | 14.21 | 345.79 | -7.76 | 46.61 | 0.1811 | 900.0 | 592.6 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 13.24 | 345.70 | -7.86 | 51.20 | 0.1716 | 775.0 | 596.2 | |
| 0.00 | 0.80 | 0.00 | 0.40 | 14.42 | 345.63 | -7.93 | 46.34 | 0.1855 | 924.0 | 802.6 | |
| 0.00 | 1.69 | 0.00 | 0.85 | 13.51 | 345.59 | -7.96 | 50.32 | 0.1758 | 1043.0 | 878.7 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 14.57 | 345.46 | -8.09 | 46.31 | 0.1893 | 755.0 | 604.6 | |
| 0.00 | 1.24 | 0.00 | 0.63 | 13.74 | 345.05 | -8.50 | 51.08 | 0.1854 | 1062.0 | 900.1 | |
| 0.00 | 2.57 | 0.00 | 1.30 | 13.71 | 344.87 | -8.69 | 51.81 | 0.1876 | 814.0 | 744.1 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 14.68 | 344.67 | -8.88 | 48.48 | 0.2004 | 974.0 | 787.7 | |
| 0.00 | 3.37 | 0.00 | 1.70 | 14.40 | 344.68 | -8.87 | 49.51 | 0.1973 | 386.0 | 652.4 | |
| 0.00 | 1.78 | 0.00 | 0.90 | 15.52 | 344.45 | -9.11 | 46.06 | 0.2128 | 767.0 | 734.8 | |
| 0.00 | 0.98 | 0.00 | 0.50 | 15.64 | 343.97 | -9.59 | 47.09 | 0.2200 | 699.0 | 526.3 | |
| 0.00 | 1.69 | 0.00 | 0.86 | 15.12 | 343.90 | -9.66 | 49.13 | 0.2152 | 831.0 | 697.8 | |
| 0.00 | 0.71 | 0.00 | 0.36 | 14.39 | 343.93 | -9.63 | 51.78 | 0.2071 | 840.0 | 626.0 | |
| 0.00 | 0.98 | 0.00 | 0.50 | 15.51 | 343.50 | -10.06 | 48.86 | 0.2245 | 775.0 | 578.3 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 14.08 | 343.56 | -9.99 | 54.00 | 0.2090 | 895.0 | 664.7 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 14.26 | 343.46 | -10.10 | 53.56 | 0.2121 | 862.0 | 657.8 | |
| 0.00 | 1.33 | 0.00 | 0.68 | 13.73 | 342.95 | -10.61 | 56.91 | 0.2144 | 859.0 | 627.9 | |
| 0.00 | 1.07 | 0.00 | 0.55 | 16.18 | 340.94 | -12.62 | 52.73 | 0.2648 | 744.0 | 593.1 | |
| 0.00 | 0.98 | 0.00 | 0.51 | 16.46 | 335.94 | -17.62 | 60.06 | 0.3364 | 850.0 | 638.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
