SDO HMI 2014-09-18 10:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 97.12 | 0.00 | 48.57 | 13.07 | 351.40 | 0.59 | 299.88 | 0.1363 | -147.2 | -297.0 | |
|
previous
or next observation for the same group /

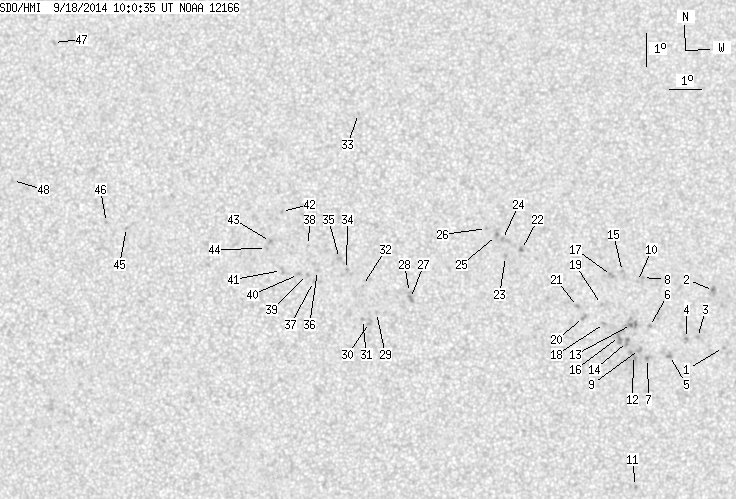

back to the solar disc SDO HMI 2014-09-18 10:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.53 | 11.46 | 358.15 | 7.33 | 301.40 | 0.1472 | -835.0 | -786.8 | |
| 0.00 | 3.46 | 0.00 | 1.74 | 13.19 | 357.89 | 7.07 | 311.58 | 0.1609 | -986.0 | -887.6 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 11.78 | 357.35 | 6.53 | 306.23 | 0.1387 | -1088.0 | -819.8 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 11.75 | 357.01 | 6.19 | 307.52 | 0.1338 | -997.0 | -849.3 | |
| 0.00 | 3.37 | 0.00 | 1.68 | 11.25 | 356.47 | 5.66 | 306.75 | 0.1212 | -1081.0 | -898.5 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 12.13 | 355.88 | 5.06 | 315.41 | 0.1233 | -940.0 | -768.4 | |
| 0.00 | 1.95 | 0.00 | 0.97 | 11.16 | 355.79 | 4.98 | 309.68 | 0.1111 | -1024.0 | -860.3 | |
| 0.00 | 0.89 | 0.00 | 0.44 | 13.62 | 355.69 | 4.87 | 323.90 | 0.1407 | -948.0 | -798.2 | |
| 0.00 | 3.55 | 0.00 | 1.77 | 11.44 | 355.55 | 4.74 | 312.96 | 0.1111 | -999.0 | -845.9 | |
| 0.00 | 0.89 | 0.00 | 0.44 | 13.50 | 355.53 | 4.71 | 324.28 | 0.1375 | -913.0 | -733.4 | |
| 0.00 | 1.07 | 0.00 | 0.53 | 7.31 | 355.37 | 4.55 | 272.43 | 0.0792 | -907.0 | -766.9 | |
| 0.00 | 3.99 | 0.00 | 1.99 | 11.26 | 355.37 | 4.55 | 312.88 | 0.1066 | -1052.0 | -975.8 | |
| 0.00 | 7.81 | 0.00 | 3.90 | 12.20 | 355.32 | 4.50 | 319.08 | 0.1177 | -1150.0 | -826.2 | |
| 0.00 | 3.82 | 0.00 | 1.90 | 11.68 | 355.19 | 4.37 | 316.84 | 0.1096 | -975.0 | -865.4 | |
| 0.00 | 1.07 | 0.00 | 0.53 | 13.80 | 355.07 | 4.25 | 328.24 | 0.1375 | -922.0 | -764.4 | |
| 0.00 | 7.81 | 0.00 | 3.89 | 11.84 | 354.94 | 4.13 | 319.42 | 0.1087 | -1034.0 | -850.7 | |
| 0.00 | 3.20 | 0.00 | 1.60 | 13.69 | 354.73 | 3.91 | 329.90 | 0.1327 | -839.0 | -862.4 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 12.23 | 354.49 | 3.67 | 324.92 | 0.1093 | -1002.0 | -766.5 | |
| 0.00 | 1.07 | 0.00 | 0.53 | 12.81 | 354.40 | 3.58 | 328.38 | 0.1168 | -758.0 | -570.2 | |
| 0.00 | 3.02 | 0.00 | 1.50 | 12.42 | 353.84 | 3.02 | 330.82 | 0.1061 | -1056.0 | -794.4 | |
| 0.00 | 1.78 | 0.00 | 0.88 | 12.76 | 353.66 | 2.84 | 333.74 | 0.1098 | -945.0 | -763.5 | |
| 0.00 | 1.86 | 0.00 | 0.93 | 14.49 | 351.94 | 1.12 | 351.58 | 0.1300 | -1129.0 | -908.0 | |
| 0.00 | 1.51 | 0.00 | 0.75 | 14.28 | 351.44 | 0.62 | 355.16 | 0.1253 | -779.0 | -690.6 | |
| 0.00 | 2.13 | 0.00 | 1.06 | 14.80 | 351.35 | 0.53 | 356.15 | 0.1342 | -1204.0 | -910.5 | |
| 0.00 | 1.86 | 0.00 | 0.93 | 14.92 | 351.16 | 0.35 | 357.54 | 0.1361 | -962.0 | -771.4 | |
| 0.00 | 1.07 | 0.00 | 0.53 | 15.13 | 350.85 | 0.03 | 359.77 | 0.1397 | -848.0 | -682.5 | |
| 0.00 | 2.84 | 0.00 | 1.42 | 13.01 | 348.50 | -2.32 | 21.07 | 0.1101 | 1065.0 | 893.4 | |
| 0.00 | 1.95 | 0.00 | 0.97 | 13.19 | 348.47 | -2.35 | 20.75 | 0.1133 | 780.0 | 569.9 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 12.58 | 347.45 | -3.37 | 31.11 | 0.1114 | 892.0 | 666.3 | |
| 0.00 | 3.02 | 0.00 | 1.50 | 12.27 | 347.24 | -3.58 | 34.21 | 0.1090 | 628.0 | 735.5 | |
| 0.00 | 1.33 | 0.00 | 0.66 | 12.36 | 347.02 | -3.80 | 35.31 | 0.1124 | 878.0 | 704.6 | |
| 0.00 | 0.36 | 0.00 | 0.18 | 13.39 | 347.01 | -3.81 | 30.63 | 0.1275 | 887.0 | 896.2 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 18.64 | 346.78 | -4.03 | 18.46 | 0.2114 | 773.0 | 663.6 | |
| 0.00 | 1.07 | 0.00 | 0.53 | 13.87 | 346.50 | -4.32 | 31.85 | 0.1391 | 882.0 | 778.8 | |
| 0.00 | 1.95 | 0.00 | 0.98 | 14.21 | 346.28 | -4.54 | 31.87 | 0.1460 | 815.0 | 710.4 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 13.84 | 345.60 | -5.22 | 37.02 | 0.1473 | 886.0 | 761.4 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 13.50 | 345.48 | -5.33 | 39.08 | 0.1441 | 871.0 | 725.6 | |
| 0.00 | 0.80 | 0.00 | 0.40 | 14.59 | 345.30 | -5.52 | 35.53 | 0.1608 | 743.0 | 594.0 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 13.71 | 345.29 | -5.53 | 39.13 | 0.1489 | 955.0 | 782.1 | |
| 0.00 | 2.04 | 0.00 | 1.02 | 13.71 | 345.01 | -5.81 | 40.52 | 0.1520 | 909.0 | 774.9 | |
| 0.00 | 2.13 | 0.00 | 1.07 | 13.82 | 344.48 | -6.34 | 42.47 | 0.1595 | 597.0 | 666.2 | |
| 0.00 | 1.42 | 0.00 | 0.72 | 15.62 | 344.43 | -6.39 | 35.89 | 0.1837 | 845.0 | 743.1 | |
| 0.00 | 1.86 | 0.00 | 0.94 | 14.70 | 344.11 | -6.71 | 40.48 | 0.1748 | 992.0 | 829.5 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 14.49 | 343.99 | -6.83 | 41.81 | 0.1734 | 740.0 | 687.9 | |
| 0.00 | 1.33 | 0.00 | 0.68 | 15.04 | 339.55 | -11.27 | 53.46 | 0.2359 | 795.0 | 648.3 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 15.18 | 338.91 | -11.91 | 54.43 | 0.2460 | 778.0 | 571.8 | |
| 0.00 | 1.78 | 0.00 | 0.93 | 20.65 | 336.78 | -14.04 | 43.74 | 0.3297 | 801.0 | 627.2 | |
| 0.00 | 1.33 | 0.00 | 0.69 | 16.38 | 335.80 | -15.02 | 56.49 | 0.2995 | 794.0 | 590.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
