SDO HMI 2014-09-18 11:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 18.18 | 0.00 | 9.37 | 7.98 | 336.73 | -13.54 | 85.79 | 0.2340 | -341.4 | -299.1 | |
|
previous
or next observation for the same group /

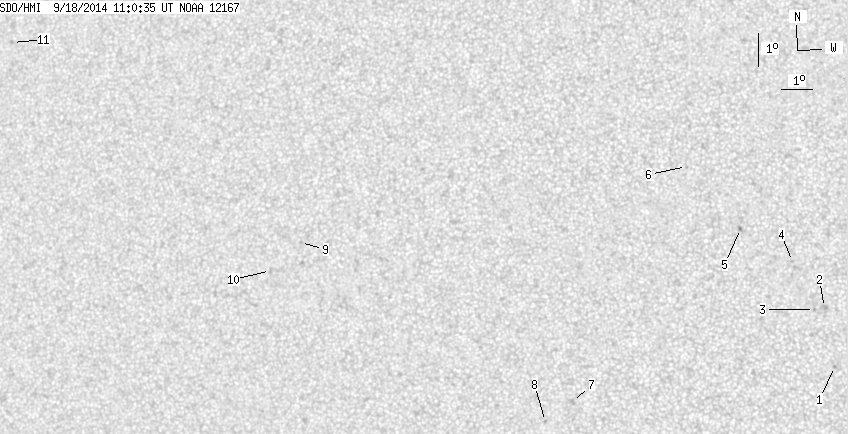

back to the solar disc SDO HMI 2014-09-18 11:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.53 | 5.86 | 344.68 | -5.59 | 102.65 | 0.0997 | -921.0 | -721.0 | |
| 0.00 | 3.64 | 0.00 | 1.81 | 7.63 | 344.36 | -5.91 | 84.81 | 0.1030 | -908.0 | -700.7 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 7.57 | 344.05 | -6.22 | 85.61 | 0.1081 | -943.0 | -691.9 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 9.01 | 343.36 | -6.91 | 74.27 | 0.1241 | -931.0 | -696.5 | |
| 0.00 | 1.69 | 0.00 | 0.85 | 9.98 | 341.73 | -8.54 | 70.82 | 0.1555 | -1027.0 | -868.7 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 11.81 | 340.00 | -10.27 | 64.44 | 0.1943 | -803.0 | -639.9 | |
| 0.00 | 2.93 | 0.00 | 1.49 | 4.65 | 336.66 | -13.61 | 99.67 | 0.2391 | -866.0 | -674.5 | |
| 0.00 | 1.24 | 0.00 | 0.64 | 4.02 | 335.83 | -14.44 | 101.47 | 0.2550 | 868.0 | 687.1 | |
| 0.00 | 1.15 | 0.00 | 0.62 | 9.11 | 327.79 | -22.48 | 83.38 | 0.3817 | 682.0 | 490.2 | |
| 0.00 | 2.22 | 0.00 | 1.20 | 8.22 | 326.85 | -23.42 | 85.77 | 0.3961 | 603.0 | 486.0 | |
| 0.00 | 1.15 | 0.00 | 0.68 | 14.59 | 317.13 | -33.14 | 74.25 | 0.5518 | 491.0 | 474.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
