SDO HMI 2014-09-18 12:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.24 | 81.82 | 0.62 | 41.00 | 13.20 | 351.82 | 2.10 | 317.26 | 0.1434 | -251.4 | -340.9 | |
|
previous
or next observation for the same group /

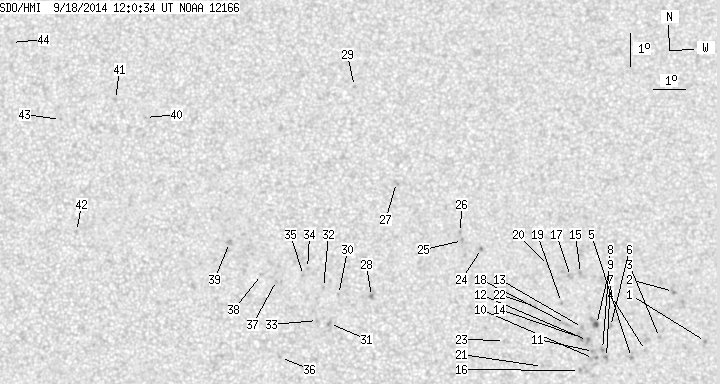

back to the solar disc SDO HMI 2014-09-18 12:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.63 | 11.62 | 358.86 | 9.14 | 297.15 | 0.1756 | -888.0 | -780.3 | |
| 0.00 | 2.66 | 0.00 | 1.34 | 13.15 | 357.91 | 8.19 | 307.39 | 0.1755 | -1030.0 | -809.4 | |
| 0.00 | 1.51 | 0.00 | 0.76 | 11.77 | 357.43 | 7.71 | 301.94 | 0.1555 | -963.0 | -745.6 | |
| 0.00 | 0.89 | 0.00 | 0.44 | 11.39 | 356.99 | 7.27 | 301.19 | 0.1456 | -752.0 | -562.9 | |
| 0.00 | 1.77 | 0.00 | 0.89 | 11.18 | 356.55 | 6.83 | 301.47 | 0.1374 | -1087.0 | -899.2 | |
| 0.00 | 2.04 | 0.00 | 1.02 | 12.13 | 355.92 | 6.20 | 309.70 | 0.1379 | -958.0 | -731.6 | |
| 0.00 | 2.40 | 0.00 | 1.20 | 11.19 | 355.78 | 6.06 | 304.61 | 0.1264 | -1024.0 | -821.9 | |
| 0.00 | 1.86 | 0.00 | 0.93 | 11.44 | 355.66 | 5.94 | 306.71 | 0.1271 | -975.0 | -862.0 | |
| 1.24 | 6.12 | 0.62 | 3.06 | 12.19 | 355.49 | 5.77 | 312.09 | 0.1331 | -1023.8 | -785.3 | |
| 0.00 | 3.82 | 0.00 | 1.90 | 11.17 | 355.38 | 5.66 | 306.26 | 0.1205 | -701.0 | -840.7 | |
| 0.00 | 2.31 | 0.00 | 1.15 | 11.38 | 355.38 | 5.66 | 307.65 | 0.1227 | -1001.0 | -889.3 | |
| 0.00 | 2.66 | 0.00 | 1.33 | 11.71 | 355.20 | 5.48 | 310.67 | 0.1239 | -1072.0 | -933.5 | |
| 0.00 | 1.69 | 0.00 | 0.84 | 12.11 | 355.06 | 5.34 | 313.81 | 0.1266 | -927.0 | -854.5 | |
| 0.00 | 3.55 | 0.00 | 1.77 | 11.81 | 354.99 | 5.27 | 312.36 | 0.1222 | -949.0 | -863.6 | |
| 0.00 | 1.60 | 0.00 | 0.80 | 13.74 | 355.03 | 5.31 | 322.12 | 0.1471 | -1014.0 | -818.5 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 10.81 | 354.94 | 5.22 | 305.88 | 0.1108 | -842.0 | -659.8 | |
| 0.00 | 3.55 | 0.00 | 1.78 | 13.66 | 354.72 | 5.00 | 323.41 | 0.1427 | -825.0 | -772.0 | |
| 0.00 | 4.35 | 0.00 | 2.17 | 12.24 | 354.53 | 4.81 | 317.45 | 0.1218 | -773.0 | -548.5 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 12.87 | 354.42 | 4.70 | 321.47 | 0.1289 | -848.0 | -697.3 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 14.00 | 354.04 | 4.32 | 328.61 | 0.1410 | -872.0 | -619.6 | |
| 0.00 | 0.80 | 0.00 | 0.40 | 10.95 | 353.80 | 4.08 | 313.68 | 0.0971 | -847.0 | -570.8 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 12.76 | 353.61 | 3.89 | 326.02 | 0.1191 | -912.0 | -703.7 | |
| 0.00 | 1.33 | 0.00 | 0.66 | 11.74 | 352.64 | 2.92 | 328.17 | 0.0951 | -803.0 | -596.0 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 14.53 | 351.96 | 2.24 | 343.60 | 0.1349 | -1063.0 | -884.5 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 14.78 | 351.37 | 1.65 | 348.15 | 0.1365 | -989.0 | -883.9 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 15.02 | 351.31 | 1.59 | 348.92 | 0.1405 | -833.0 | -685.1 | |
| 0.00 | 2.57 | 0.00 | 1.29 | 16.55 | 349.32 | -0.40 | 2.36 | 0.1644 | -726.0 | -523.8 | |
| 0.00 | 2.13 | 0.00 | 1.06 | 13.08 | 348.55 | -1.17 | 10.89 | 0.1060 | 1144.0 | 944.8 | |
| 0.00 | 1.15 | 0.00 | 0.59 | 19.49 | 347.97 | -1.75 | 7.65 | 0.2169 | 869.0 | 666.3 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 13.14 | 347.53 | -2.19 | 19.60 | 0.1117 | 909.0 | 719.4 | |
| 0.00 | 2.22 | 0.00 | 1.10 | 12.26 | 347.26 | -2.47 | 25.17 | 0.0993 | 958.0 | 833.8 | |
| 0.00 | 0.80 | 0.00 | 0.40 | 13.35 | 347.06 | -2.66 | 22.62 | 0.1180 | 972.0 | 843.4 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 12.35 | 346.88 | -2.84 | 27.96 | 0.1036 | 939.0 | 705.4 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 13.93 | 346.56 | -3.16 | 24.34 | 0.1306 | 844.0 | 708.2 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 13.71 | 346.44 | -3.29 | 25.89 | 0.1281 | 845.0 | 752.8 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 11.23 | 345.76 | -3.96 | 43.43 | 0.0991 | -765.0 | -518.9 | |
| 0.00 | 0.62 | 0.00 | 0.31 | 13.56 | 345.60 | -4.12 | 31.93 | 0.1327 | 925.0 | 716.0 | |
| 0.00 | 1.51 | 0.00 | 0.75 | 13.73 | 345.13 | -4.59 | 34.00 | 0.1397 | 818.0 | 624.1 | |
| 0.00 | 3.37 | 0.00 | 1.69 | 14.70 | 344.11 | -5.61 | 35.59 | 0.1632 | 950.0 | 789.2 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 18.48 | 341.32 | -8.40 | 35.01 | 0.2427 | 797.0 | 571.0 | |
| 0.00 | 1.86 | 0.00 | 0.96 | 19.01 | 340.32 | -9.40 | 36.67 | 0.2597 | 892.0 | 517.3 | |
| 0.00 | 1.60 | 0.00 | 0.81 | 14.95 | 339.29 | -10.43 | 51.73 | 0.2238 | 744.0 | 550.0 | |
| 0.00 | 0.98 | 0.00 | 0.50 | 18.36 | 338.58 | -11.14 | 42.95 | 0.2702 | 781.0 | 637.6 | |
| 0.00 | 1.15 | 0.00 | 0.60 | 20.70 | 336.81 | -12.91 | 41.36 | 0.3177 | 719.0 | 568.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
