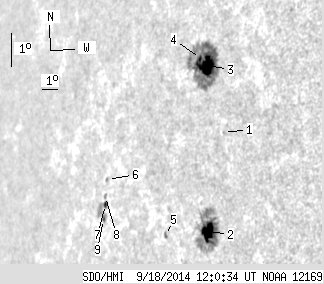

SDO HMI 2014-09-18 12:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.26 | 197.70 | 36.42 | 195.41 | 7.88 | 289.39 | -60.33 | 85.01 | 0.8658 | -549.0 | -109.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-18 12:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.71 | 0.00 | 0.66 | 8.29 | 291.10 | -58.62 | 84.65 | 0.8506 | -111.0 | -160.4 | |
| 15.17 | 72.05 | 14.43 | 68.54 | 5.25 | 290.80 | -58.92 | 88.19 | 0.8553 | -668.5 | -166.7 | |
| 18.81 | 105.59 | 18.36 | 103.50 | 10.17 | 289.56 | -60.16 | 82.37 | 0.8635 | -721.9 | -162.5 | |
| 1.33 | -3.00 | 1.32 | -3.00 | 10.34 | 289.13 | -60.59 | 82.16 | 0.8671 | -339.3 | 999999 | |
| 0.00 | 2.22 | 0.00 | 2.28 | 4.85 | 288.22 | -61.50 | 88.37 | 0.8779 | 561.0 | 473.8 | |
| 0.00 | 1.69 | 0.00 | 2.00 | 6.09 | 284.00 | -65.72 | 86.56 | 0.9098 | 30.0 | 98.1 | |
| 1.42 | 13.84 | 1.68 | 16.53 | 5.33 | 284.02 | -65.70 | 87.40 | 0.9102 | 166.4 | 260.9 | |
| 0.00 | 1.60 | 0.00 | 1.90 | 5.57 | 283.97 | -65.75 | 87.13 | 0.9104 | 293.0 | 231.8 | |
| 0.53 | -7.00 | 0.63 | -7.00 | 4.87 | 283.96 | -65.76 | 87.90 | 0.9109 | 169.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
