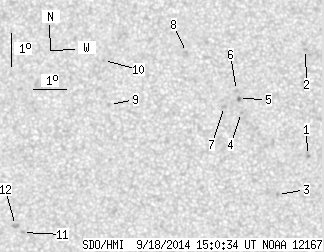

SDO HMI 2014-09-18 15:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.35 | 19.34 | 0.18 | 9.66 | 7.59 | 341.63 | -6.44 | 82.05 | 0.1171 | -747.0 | -624.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-18 15:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.48 | 0.00 | 1.23 | 7.07 | 345.52 | -2.55 | 91.27 | 0.0444 | -842.0 | -699.4 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 10.27 | 345.44 | -2.63 | 39.54 | 0.0713 | 920.0 | 757.8 | |
| 0.00 | 1.33 | 0.00 | 0.66 | 5.90 | 344.61 | -3.46 | 109.68 | 0.0640 | -918.0 | -759.8 | |
| 0.00 | 0.98 | 0.00 | 0.48 | 8.36 | 343.50 | -4.57 | 74.64 | 0.0821 | -1032.0 | -795.5 | |
| 0.35 | 1.51 | 0.18 | 0.75 | 8.78 | 343.40 | -4.67 | 70.16 | 0.0859 | -1121.8 | -967.2 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 9.02 | 343.34 | -4.73 | 67.81 | 0.0884 | -915.0 | -690.2 | |
| 0.00 | 2.22 | 0.00 | 1.10 | 8.53 | 342.98 | -5.09 | 74.21 | 0.0916 | -736.0 | -643.6 | |
| 0.00 | 1.69 | 0.00 | 0.84 | 10.15 | 341.79 | -6.28 | 63.71 | 0.1207 | -1037.0 | -669.6 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 8.54 | 339.45 | -8.62 | 80.07 | 0.1511 | -663.0 | -543.9 | |
| 0.00 | 0.71 | 0.00 | 0.36 | 9.87 | 339.23 | -8.84 | 72.03 | 0.1598 | -819.0 | -675.0 | |
| 0.00 | 1.51 | 0.00 | 0.76 | 4.64 | 336.85 | -11.22 | 102.00 | 0.1992 | -929.0 | -746.9 | |
| 0.00 | 3.10 | 0.00 | 1.57 | 4.84 | 336.63 | -11.44 | 100.76 | 0.2021 | -804.0 | -690.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
