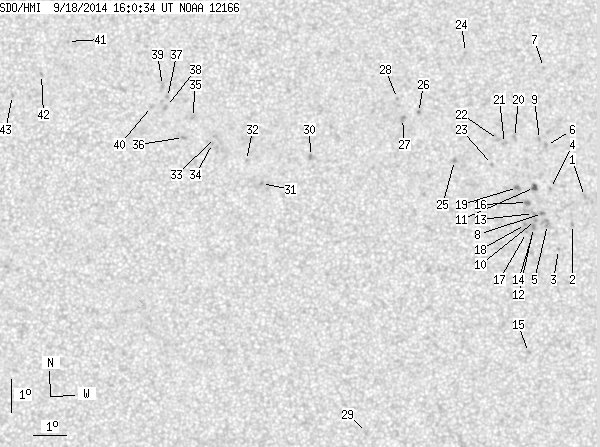

SDO HMI 2014-09-18 16:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.77 | 80.78 | 0.89 | 40.54 | 12.65 | 351.95 | 4.43 | 317.34 | 0.1527 | -284.0 | -294.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-18 16:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.86 | 0.00 | 0.94 | 11.91 | 357.10 | 9.58 | 297.53 | 0.1845 | -850.0 | -764.7 | |
| 0.00 | 1.77 | 0.00 | 0.89 | 11.07 | 356.70 | 9.18 | 294.15 | 0.1724 | -951.0 | -749.8 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 10.33 | 356.24 | 8.72 | 290.94 | 0.1605 | -791.0 | -622.6 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 12.18 | 356.05 | 8.53 | 301.58 | 0.1710 | -935.0 | -759.1 | |
| 0.00 | 6.47 | 0.00 | 3.25 | 11.09 | 355.92 | 8.40 | 296.09 | 0.1604 | -785.0 | -606.0 | |
| 0.00 | 1.68 | 0.00 | 0.85 | 13.48 | 355.97 | 8.45 | 308.01 | 0.1823 | -912.0 | -800.9 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 15.85 | 355.97 | 8.45 | 317.20 | 0.2091 | -584.0 | -411.5 | |
| 0.00 | 2.13 | 0.00 | 1.07 | 11.43 | 355.78 | 8.26 | 298.36 | 0.1607 | -970.0 | -809.5 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 13.66 | 355.76 | 8.24 | 309.52 | 0.1814 | -826.0 | -710.3 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 11.22 | 355.55 | 8.04 | 297.81 | 0.1557 | -1129.0 | -969.0 | |
| 1.77 | 4.08 | 0.89 | 2.05 | 12.21 | 355.55 | 8.04 | 303.28 | 0.1642 | -1104.1 | -825.5 | |
| 0.00 | 2.57 | 0.00 | 1.29 | 11.01 | 355.49 | 7.97 | 296.77 | 0.1531 | -973.0 | -857.3 | |
| 0.00 | 2.04 | 0.00 | 1.02 | 11.43 | 355.50 | 7.98 | 299.19 | 0.1566 | -1022.0 | -836.8 | |
| 0.00 | 1.51 | 0.00 | 0.76 | 10.80 | 355.45 | 7.93 | 295.61 | 0.1510 | -833.0 | -638.5 | |
| 0.00 | 1.60 | 0.00 | 0.80 | 7.25 | 355.24 | 7.73 | 271.28 | 0.1340 | -799.0 | -668.5 | |
| 0.00 | 2.57 | 0.00 | 1.29 | 11.77 | 355.32 | 7.80 | 301.61 | 0.1568 | -1213.0 | -980.5 | |
| 0.00 | 0.71 | 0.00 | 0.36 | 10.86 | 355.27 | 7.75 | 296.51 | 0.1486 | -870.0 | -690.5 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 11.10 | 355.24 | 7.72 | 298.04 | 0.1501 | -964.0 | -780.9 | |
| 0.00 | 3.10 | 0.00 | 1.56 | 12.22 | 355.03 | 7.51 | 305.08 | 0.1567 | -1156.0 | -956.0 | |
| 0.00 | 3.02 | 0.00 | 1.52 | 13.74 | 354.98 | 7.46 | 312.59 | 0.1721 | -993.0 | -758.7 | |
| 0.00 | 2.04 | 0.00 | 1.02 | 13.56 | 354.66 | 7.14 | 313.02 | 0.1661 | -1054.0 | -866.0 | |
| 0.00 | 1.95 | 0.00 | 0.98 | 13.69 | 354.48 | 6.96 | 314.31 | 0.1653 | -961.0 | -787.8 | |
| 0.00 | 1.51 | 0.00 | 0.76 | 12.93 | 354.27 | 6.75 | 311.62 | 0.1540 | -675.0 | -438.2 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 16.35 | 353.53 | 6.01 | 327.98 | 0.1903 | -852.0 | -596.2 | |
| 0.00 | 1.86 | 0.00 | 0.93 | 13.07 | 353.09 | 5.57 | 317.68 | 0.1412 | -935.0 | -777.2 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 14.54 | 352.00 | 4.49 | 329.62 | 0.1504 | -960.0 | -838.3 | |
| 0.00 | 3.28 | 0.00 | 1.64 | 14.36 | 351.50 | 3.98 | 331.89 | 0.1435 | -835.0 | -785.5 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 14.97 | 351.36 | 3.84 | 334.65 | 0.1518 | -923.0 | -767.9 | |
| 0.00 | 2.39 | 0.00 | 1.19 | 4.90 | 350.29 | 2.77 | 231.06 | 0.0622 | 821.0 | 461.4 | |
| 0.00 | 2.48 | 0.00 | 1.24 | 13.23 | 348.63 | 1.12 | 349.88 | 0.1083 | 1124.0 | 887.3 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 12.41 | 347.12 | -0.40 | 4.24 | 0.0926 | 1081.0 | 907.2 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 13.11 | 346.65 | -0.86 | 8.03 | 0.1056 | 934.0 | 675.0 | |
| 0.00 | 2.22 | 0.00 | 1.11 | 13.80 | 345.69 | -1.83 | 14.92 | 0.1208 | 897.0 | 825.6 | |
| 0.00 | 0.71 | 0.00 | 0.35 | 13.62 | 345.60 | -1.92 | 16.06 | 0.1181 | 976.0 | 821.8 | |
| 0.00 | 2.31 | 0.00 | 1.15 | 14.41 | 344.97 | -2.55 | 18.76 | 0.1344 | 937.0 | 734.0 | |
| 0.00 | 2.04 | 0.00 | 1.02 | 13.80 | 344.70 | -2.82 | 22.35 | 0.1262 | 944.0 | 742.3 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 15.01 | 344.19 | -3.33 | 22.26 | 0.1489 | 958.0 | 792.1 | |
| 0.00 | 1.86 | 0.00 | 0.93 | 14.74 | 344.16 | -3.36 | 23.17 | 0.1447 | 964.0 | 851.9 | |
| 0.00 | 1.68 | 0.00 | 0.84 | 15.38 | 344.02 | -3.49 | 22.27 | 0.1558 | 818.0 | 747.7 | |
| 0.00 | 1.51 | 0.00 | 0.76 | 14.74 | 343.69 | -3.83 | 25.98 | 0.1480 | 760.0 | 616.8 | |
| 0.00 | 1.42 | 0.00 | 0.72 | 16.69 | 341.00 | -6.51 | 33.10 | 0.1999 | 740.0 | 485.7 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 15.67 | 340.22 | -7.30 | 39.32 | 0.1940 | 800.0 | 686.2 | |
| 0.00 | 1.42 | 0.00 | 0.72 | 15.02 | 339.33 | -8.19 | 44.84 | 0.1960 | 801.0 | 639.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
