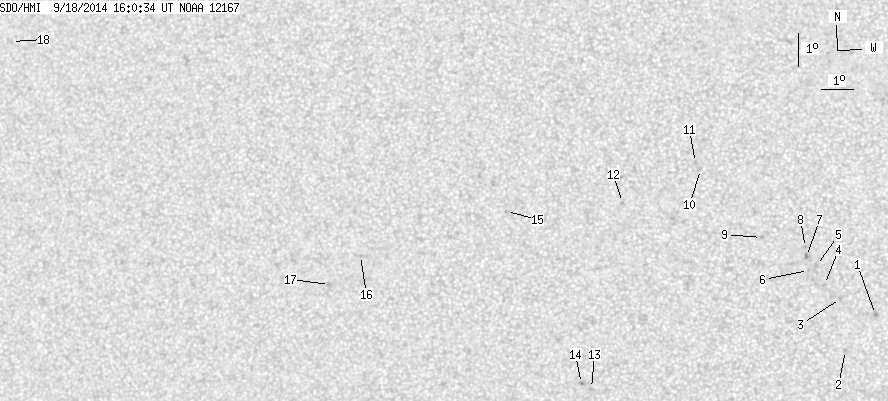

SDO HMI 2014-09-18 16:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 27.98 | 0.00 | 14.17 | 8.52 | 338.56 | -8.96 | 78.95 | 0.1594 | -619.4 | -469.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-18 16:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.77 | 0.00 | 0.88 | 7.02 | 345.54 | -1.98 | 93.45 | 0.0345 | -930.0 | -744.0 | |
| 0.00 | 0.98 | 0.00 | 0.48 | 5.93 | 344.63 | -2.88 | 112.73 | 0.0545 | -929.0 | -780.3 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 7.49 | 344.48 | -3.04 | 83.11 | 0.0533 | -902.0 | -728.5 | |
| 0.00 | 1.33 | 0.00 | 0.66 | 7.91 | 343.99 | -3.53 | 77.32 | 0.0628 | -910.0 | -725.1 | |
| 0.00 | 2.39 | 0.00 | 1.19 | 8.48 | 343.74 | -3.78 | 70.02 | 0.0697 | -859.0 | -556.9 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 8.33 | 343.49 | -4.02 | 73.10 | 0.0729 | -985.0 | -735.5 | |
| 0.00 | 1.86 | 0.00 | 0.93 | 8.75 | 343.43 | -4.09 | 68.01 | 0.0763 | -1224.0 | -1002.0 | |
| 0.00 | 1.68 | 0.00 | 0.84 | 9.02 | 343.40 | -4.12 | 64.95 | 0.0787 | -960.0 | -729.2 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 9.31 | 342.05 | -5.47 | 67.77 | 0.1021 | -837.0 | -769.7 | |
| 0.00 | 2.39 | 0.00 | 1.20 | 11.34 | 340.13 | -7.39 | 59.52 | 0.1470 | -647.0 | -517.2 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 11.55 | 339.97 | -7.55 | 58.82 | 0.1512 | -856.0 | -694.1 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 10.30 | 337.74 | -9.78 | 71.18 | 0.1774 | -783.0 | -693.3 | |
| 0.00 | 1.86 | 0.00 | 0.94 | 4.68 | 336.91 | -10.61 | 102.52 | 0.1889 | -761.0 | -559.4 | |
| 0.00 | 1.77 | 0.00 | 0.90 | 4.82 | 336.60 | -10.92 | 101.42 | 0.1935 | -1018.0 | -796.0 | |
| 0.00 | 1.15 | 0.00 | 0.59 | 9.95 | 334.13 | -13.39 | 77.09 | 0.2351 | -788.0 | -580.5 | |
| 0.00 | 1.42 | 0.00 | 0.74 | 8.47 | 329.57 | -17.95 | 84.52 | 0.3076 | 670.0 | 586.2 | |
| 0.00 | 2.39 | 0.00 | 1.25 | 7.56 | 328.61 | -18.90 | 87.49 | 0.3229 | 836.0 | 521.9 | |
| 0.00 | 1.06 | 0.00 | 0.61 | 14.35 | 317.25 | -30.27 | 73.78 | 0.5106 | 734.0 | 516.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
