SDO HMI 2014-09-18 17:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.86 | 56.06 | 16.16 | 39.32 | -21.02 | 311.16 | -35.81 | 129.52 | 0.7098 | -165.8 | -120.0 | |
|
previous
or next observation for the same group /

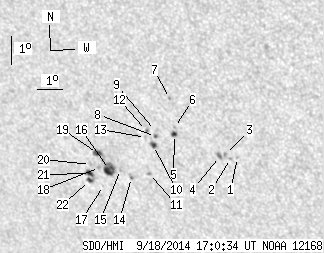

back to the solar disc SDO HMI 2014-09-18 17:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.53 | -20.64 | 315.52 | -31.45 | 132.61 | 0.6656 | 725.0 | 631.9 | |
| 0.00 | 1.15 | 0.00 | 0.77 | -20.70 | 315.24 | -31.72 | 132.43 | 0.6687 | 630.0 | 562.5 | |
| 0.00 | 1.15 | 0.00 | 0.77 | -20.57 | 315.08 | -31.88 | 132.14 | 0.6692 | 786.0 | 718.9 | |
| 0.80 | 2.13 | 0.53 | 1.42 | -20.66 | 314.83 | -32.13 | 132.03 | 0.6723 | 730.8 | 556.3 | |
| 1.68 | 3.10 | 1.14 | 2.10 | -20.03 | 313.26 | -33.70 | 129.97 | 0.6826 | 677.9 | 526.0 | |
| 0.00 | 0.71 | 0.00 | 0.48 | -19.79 | 313.32 | -33.65 | 129.73 | 0.6802 | 765.0 | 630.9 | |
| 0.00 | 0.98 | 0.00 | 0.65 | -18.82 | 313.36 | -33.61 | 128.58 | 0.6726 | 541.0 | 469.6 | |
| 0.62 | 1.77 | 0.42 | 1.21 | -20.15 | 312.49 | -34.47 | 129.50 | 0.6909 | 830.4 | 775.3 | |
| 0.00 | 1.51 | 0.00 | 1.03 | -19.95 | 312.55 | -34.42 | 129.30 | 0.6889 | 679.0 | 500.1 | |
| 1.95 | 3.64 | 1.34 | 2.50 | -20.47 | 312.33 | -34.63 | 129.75 | 0.6948 | 595.8 | 425.6 | |
| 0.00 | 1.51 | 0.00 | 1.05 | -21.45 | 311.91 | -35.05 | 130.56 | 0.7059 | -854.0 | -702.5 | |
| 0.35 | 1.42 | 0.24 | 0.97 | -19.97 | 312.19 | -34.78 | 129.05 | 0.6926 | 641.5 | 511.8 | |
| 0.00 | 0.98 | 0.00 | 0.67 | -20.21 | 312.09 | -34.88 | 129.26 | 0.6954 | 324.0 | 296.8 | |
| 0.44 | 1.86 | 0.31 | 1.31 | -21.64 | 311.14 | -35.83 | 130.19 | 0.7145 | -774.8 | -710.9 | |
| 0.00 | 1.06 | 0.00 | 0.75 | -21.40 | 310.77 | -36.20 | 129.63 | 0.7163 | -690.0 | -641.0 | |
| 9.22 | 12.06 | 6.57 | 8.59 | -21.43 | 310.32 | -36.65 | 129.34 | 0.7208 | -855.1 | -603.8 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -22.01 | 309.90 | -37.07 | 129.69 | 0.7286 | -376.0 | -399.3 | |
| 0.00 | 1.51 | 0.00 | 1.08 | -21.40 | 309.92 | -37.05 | 129.01 | 0.7242 | -583.0 | -504.6 | |
| 3.10 | 7.54 | 2.21 | 5.36 | -20.92 | 309.98 | -36.98 | 128.50 | 0.7204 | -831.2 | -650.0 | |
| 0.00 | 1.33 | 0.00 | 0.96 | -21.32 | 309.58 | -37.39 | 128.68 | 0.7269 | -587.0 | -472.9 | |
| 2.93 | 9.58 | 2.11 | 6.93 | -21.64 | 309.44 | -37.53 | 128.94 | 0.7303 | -671.1 | -456.3 | |
| 1.77 | -21.00 | 1.29 | -21.00 | -21.88 | 309.36 | -37.60 | 129.17 | 0.7326 | -445.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
