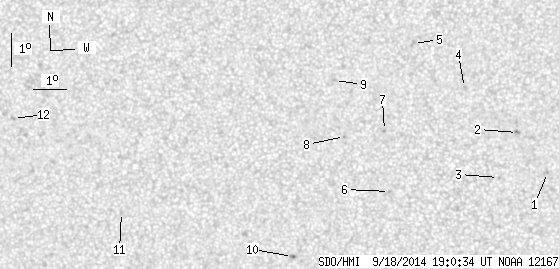

SDO HMI 2014-09-18 19:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 18.52 | 0.00 | 9.30 | 8.49 | 338.40 | -7.46 | 74.73 | 0.1364 | -607.0 | -498.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-18 19:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.53 | 7.54 | 344.34 | -1.52 | 75.31 | 0.0273 | -968.0 | -782.8 | |
| 0.00 | 2.22 | 0.00 | 1.10 | 8.74 | 343.42 | -2.44 | 56.41 | 0.0507 | -1097.0 | -967.6 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 7.38 | 342.85 | -3.01 | 85.27 | 0.0525 | -757.0 | -660.9 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 10.09 | 341.79 | -4.07 | 53.55 | 0.0873 | -897.0 | -798.2 | |
| 0.00 | 2.75 | 0.00 | 1.37 | 11.40 | 340.20 | -5.66 | 52.28 | 0.1227 | -742.0 | -553.2 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 6.93 | 339.54 | -6.32 | 91.56 | 0.1099 | -838.0 | -557.3 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 8.77 | 339.36 | -6.50 | 75.44 | 0.1162 | -874.0 | -711.6 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 8.57 | 338.13 | -7.73 | 78.96 | 0.1361 | -911.0 | -710.2 | |
| 0.00 | 1.77 | 0.00 | 0.89 | 10.25 | 337.79 | -8.07 | 68.16 | 0.1495 | -846.0 | -575.3 | |
| 0.00 | 2.22 | 0.00 | 1.11 | 4.93 | 336.60 | -9.26 | 103.02 | 0.1653 | -994.0 | -788.8 | |
| 0.00 | 0.98 | 0.00 | 0.50 | 6.12 | 331.29 | -14.57 | 93.17 | 0.2517 | 779.0 | 562.1 | |
| 0.00 | 1.86 | 0.00 | 0.97 | 8.84 | 327.77 | -18.09 | 83.38 | 0.3103 | 861.0 | 662.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
