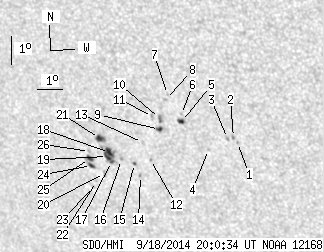

SDO HMI 2014-09-18 20:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.48 | 58.71 | 14.20 | 40.36 | -21.09 | 311.12 | -34.18 | 130.87 | 0.6950 | -169.9 | -66.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-18 20:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.58 | -20.67 | 315.32 | -29.99 | 133.97 | 0.6521 | 657.0 | 540.1 | |
| 0.00 | 1.42 | 0.00 | 0.92 | -20.51 | 315.21 | -30.10 | 133.68 | 0.6517 | 762.0 | 663.6 | |
| 0.00 | 1.60 | 0.00 | 1.04 | -20.56 | 314.97 | -30.33 | 133.52 | 0.6544 | 888.0 | 693.6 | |
| 0.00 | 0.80 | 0.00 | 0.53 | -20.99 | 314.16 | -31.15 | 133.28 | 0.6657 | 462.0 | 360.9 | |
| 2.13 | 3.46 | 1.41 | 2.29 | -20.10 | 313.35 | -31.96 | 131.52 | 0.6662 | 765.6 | 535.8 | |
| 0.00 | 0.71 | 0.00 | 0.47 | -19.86 | 313.40 | -31.90 | 131.28 | 0.6638 | 643.0 | 406.1 | |
| 0.00 | 0.71 | 0.00 | 0.47 | -19.21 | 313.02 | -32.29 | 130.17 | 0.6625 | 707.0 | 605.5 | |
| 0.00 | 1.15 | 0.00 | 0.76 | -19.39 | 312.91 | -32.40 | 130.29 | 0.6650 | 634.0 | 522.6 | |
| 1.68 | 3.28 | 1.13 | 2.20 | -20.43 | 312.43 | -32.88 | 131.13 | 0.6777 | 655.5 | 485.3 | |
| 0.00 | 3.01 | 0.00 | 2.02 | -20.05 | 312.52 | -32.79 | 130.76 | 0.6739 | 891.0 | 741.9 | |
| 0.00 | 3.28 | 0.00 | 2.20 | -20.00 | 312.27 | -33.04 | 130.49 | 0.6760 | 455.0 | 403.1 | |
| 0.00 | 1.06 | 0.00 | 0.73 | -21.49 | 311.81 | -33.49 | 131.86 | 0.6918 | -682.0 | -582.0 | |
| 0.00 | 0.89 | 0.00 | 0.60 | -20.93 | 311.65 | -33.66 | 131.07 | 0.6890 | 349.0 | 219.3 | |
| 0.00 | 1.60 | 0.00 | 1.11 | -22.08 | 311.27 | -34.04 | 132.09 | 0.7013 | -651.0 | -553.1 | |
| 0.53 | 1.33 | 0.37 | 0.92 | -21.68 | 311.14 | -34.17 | 131.53 | 0.6995 | -667.8 | -635.7 | |
| 0.00 | 1.51 | 0.00 | 1.05 | -21.58 | 310.66 | -34.65 | 131.03 | 0.7032 | -713.0 | -660.2 | |
| 0.98 | 12.94 | 0.68 | 9.03 | -21.68 | 310.23 | -35.08 | 130.81 | 0.7079 | -762.0 | -732.6 | |
| 4.70 | -17.00 | 3.27 | -17.00 | -21.37 | 310.24 | -35.07 | 130.46 | 0.7056 | -979.0 | 999999 | |
| 3.01 | -17.00 | 2.11 | -17.00 | -21.52 | 310.12 | -35.19 | 130.54 | 0.7078 | -837.7 | 999999 | |
| 0.00 | 2.22 | 0.00 | 1.57 | -22.12 | 309.83 | -35.48 | 131.00 | 0.7148 | -538.0 | -440.9 | |
| 3.37 | 5.59 | 2.34 | 3.89 | -20.92 | 309.97 | -35.34 | 129.73 | 0.7049 | -851.8 | -643.0 | |
| 0.00 | 0.44 | 0.00 | 0.32 | -22.43 | 309.41 | -35.89 | 131.03 | 0.7208 | 199.0 | 173.6 | |
| 0.00 | 0.98 | 0.00 | 0.70 | -22.61 | 309.24 | -36.07 | 131.11 | 0.7237 | -325.0 | -306.1 | |
| 1.86 | 8.60 | 1.32 | 6.09 | -21.88 | 309.38 | -35.93 | 130.39 | 0.7173 | -608.8 | -439.1 | |
| 2.22 | -24.00 | 1.57 | -24.00 | -21.64 | 309.36 | -35.94 | 130.11 | 0.7157 | -741.6 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.87 | -21.40 | 309.43 | -35.87 | 129.88 | 0.7133 | -667.0 | -521.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
