SDO HMI 2014-09-18 21:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.53 | 21.54 | 0.26 | 10.85 | 7.89 | 336.55 | -8.20 | 85.07 | 0.1470 | -534.8 | -221.9 | |
|
previous
or next observation for the same group /

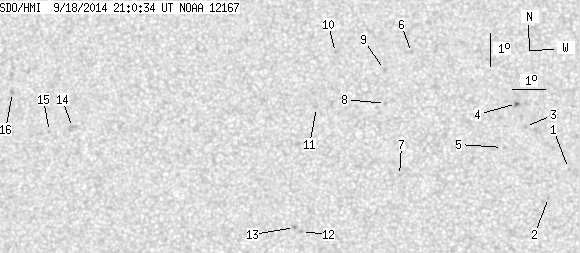

back to the solar disc SDO HMI 2014-09-18 21:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.62 | 0.00 | 0.31 | 6.79 | 344.96 | 0.21 | 209.69 | 0.0073 | -619.0 | -441.0 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 5.92 | 344.36 | -0.40 | 162.10 | 0.0227 | -861.0 | -628.9 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 8.05 | 343.66 | -1.10 | 50.21 | 0.0248 | -841.0 | -727.5 | |
| 0.53 | 1.95 | 0.26 | 0.97 | 8.75 | 343.38 | -1.37 | 40.34 | 0.0368 | -1119.7 | -904.0 | |
| 0.00 | 0.35 | 0.00 | 0.18 | 7.42 | 342.96 | -1.80 | 81.23 | 0.0316 | -373.0 | -507.5 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 10.27 | 340.16 | -4.59 | 55.21 | 0.0964 | -766.0 | -557.8 | |
| 0.00 | 1.33 | 0.00 | 0.66 | 6.56 | 339.84 | -4.92 | 96.59 | 0.0862 | -717.0 | -484.8 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 8.72 | 339.39 | -5.37 | 73.17 | 0.0971 | -890.0 | -629.0 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 9.75 | 339.34 | -5.42 | 63.76 | 0.1042 | -840.0 | -711.9 | |
| 0.00 | 0.80 | 0.00 | 0.40 | 10.24 | 337.82 | -6.93 | 65.22 | 0.1314 | -857.0 | -729.8 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 8.58 | 337.27 | -7.48 | 78.62 | 0.1320 | -754.0 | -508.8 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 4.84 | 336.87 | -7.89 | 106.00 | 0.1429 | -1049.0 | -839.8 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 4.95 | 336.65 | -8.10 | 104.80 | 0.1459 | -1090.0 | -863.4 | |
| 0.00 | 4.17 | 0.00 | 2.14 | 7.80 | 329.72 | -15.03 | 86.53 | 0.2586 | 834.0 | 627.4 | |
| 0.00 | 1.15 | 0.00 | 0.59 | 7.66 | 329.00 | -15.75 | 87.13 | 0.2706 | 749.0 | 577.6 | |
| 0.00 | 1.86 | 0.00 | 0.96 | 8.79 | 327.78 | -16.97 | 83.28 | 0.2918 | 789.0 | 667.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
