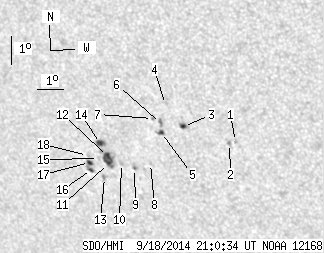

SDO HMI 2014-09-18 21:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.42 | 57.90 | 13.37 | 39.68 | -21.14 | 310.84 | -33.92 | 131.15 | 0.6929 | -319.7 | -237.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-18 21:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.75 | -20.51 | 315.25 | -29.51 | 134.23 | 0.6461 | 779.0 | 647.4 | |
| 0.00 | 1.86 | 0.00 | 1.21 | -20.59 | 315.01 | -29.75 | 134.10 | 0.6491 | 833.0 | 627.6 | |
| 2.04 | 3.55 | 1.34 | 2.33 | -20.12 | 313.39 | -31.36 | 132.07 | 0.6607 | 736.6 | 540.6 | |
| 0.00 | 0.53 | 0.00 | 0.35 | -19.42 | 312.87 | -31.88 | 130.77 | 0.6601 | 619.0 | 573.2 | |
| 1.68 | 3.81 | 1.12 | 2.54 | -20.39 | 312.50 | -32.26 | 131.61 | 0.6714 | 683.1 | 476.5 | |
| 0.00 | 3.28 | 0.00 | 2.18 | -20.08 | 312.53 | -32.22 | 131.27 | 0.6687 | 912.0 | 731.7 | |
| 0.00 | 1.33 | 0.00 | 0.89 | -19.93 | 312.26 | -32.49 | 130.87 | 0.6701 | 520.0 | 432.1 | |
| 0.00 | 1.24 | 0.00 | 0.84 | -21.49 | 311.80 | -32.95 | 132.31 | 0.6867 | -723.0 | -460.9 | |
| 0.00 | 0.98 | 0.00 | 0.67 | -21.71 | 311.12 | -33.63 | 132.00 | 0.6947 | -765.0 | -712.1 | |
| 0.00 | 2.22 | 0.00 | 1.53 | -21.57 | 310.65 | -34.10 | 131.46 | 0.6981 | -745.0 | -656.3 | |
| 3.90 | 25.62 | 2.71 | 17.74 | -21.61 | 310.13 | -34.63 | 131.09 | 0.7032 | -832.2 | -654.3 | |
| 4.97 | -11.00 | 3.44 | -11.00 | -21.37 | 310.16 | -34.60 | 130.83 | 0.7012 | -957.1 | 999999 | |
| 0.00 | 1.77 | 0.00 | 1.24 | -22.11 | 309.83 | -34.93 | 131.43 | 0.7097 | -665.0 | -543.0 | |
| 3.55 | -11.00 | 2.45 | -11.00 | -20.94 | 310.00 | -34.76 | 130.21 | 0.6995 | -895.2 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.93 | -21.47 | 309.77 | -34.98 | 130.65 | 0.7055 | -531.0 | -405.8 | |
| 1.33 | 7.63 | 0.94 | 5.36 | -21.87 | 309.38 | -35.37 | 130.81 | 0.7121 | -588.4 | -473.1 | |
| 1.95 | -16.00 | 1.37 | -16.00 | -21.63 | 309.37 | -35.39 | 130.52 | 0.7105 | -654.0 | 999999 | |
| 0.00 | 1.60 | 0.00 | 1.12 | -21.40 | 309.36 | -35.40 | 130.24 | 0.7089 | -588.0 | -468.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
