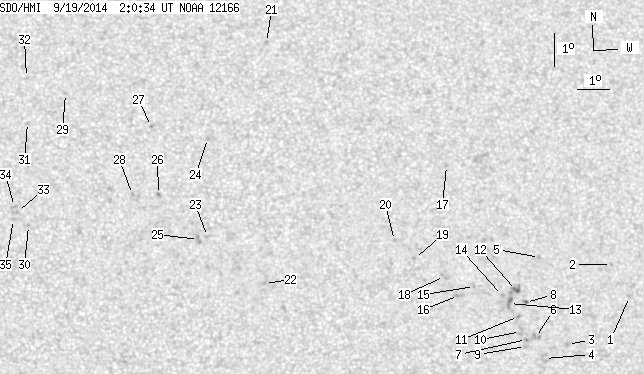

SDO HMI 2014-09-19 02:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.24 | 74.27 | 0.64 | 37.74 | 13.43 | 351.80 | 9.80 | 309.96 | 0.2225 | -31.9 | -242.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-19 02:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.95 | 0.00 | 1.01 | 12.31 | 359.15 | 17.15 | 288.32 | 0.3048 | -579.0 | -323.3 | |
| 0.00 | 0.98 | 0.00 | 0.51 | 13.30 | 358.64 | 16.64 | 291.93 | 0.3017 | -713.0 | -591.0 | |
| 0.00 | 1.86 | 0.00 | 0.96 | 10.93 | 357.08 | 15.08 | 285.36 | 0.2661 | -717.0 | -526.9 | |
| 0.00 | 5.23 | 0.00 | 2.68 | 10.53 | 356.33 | 14.33 | 284.48 | 0.2524 | -322.0 | -612.2 | |
| 0.00 | 1.69 | 0.00 | 0.87 | 13.59 | 356.34 | 14.34 | 295.71 | 0.2684 | -791.0 | -648.3 | |
| 0.00 | 4.61 | 0.00 | 2.36 | 11.17 | 356.08 | 14.08 | 287.20 | 0.2509 | -1008.0 | -789.3 | |
| 0.00 | 1.24 | 0.00 | 0.63 | 11.12 | 355.79 | 13.79 | 287.29 | 0.2461 | -995.0 | -857.8 | |
| 0.00 | 2.13 | 0.00 | 1.09 | 12.24 | 355.82 | 13.82 | 291.57 | 0.2521 | -976.0 | -772.5 | |
| 0.00 | 1.69 | 0.00 | 0.86 | 10.91 | 355.75 | 13.75 | 286.50 | 0.2445 | -763.0 | -571.7 | |
| 0.00 | 4.35 | 0.00 | 2.22 | 11.37 | 355.61 | 13.61 | 288.46 | 0.2443 | -363.0 | -599.8 | |
| 0.00 | 1.51 | 0.00 | 0.77 | 11.82 | 355.57 | 13.57 | 290.29 | 0.2460 | -957.0 | -839.5 | |
| 1.24 | 4.61 | 0.64 | 2.36 | 12.61 | 355.55 | 13.55 | 293.32 | 0.2501 | -1029.9 | -771.2 | |
| 0.00 | 4.61 | 0.00 | 2.36 | 12.22 | 355.31 | 13.31 | 292.19 | 0.2441 | -1023.0 | -941.8 | |
| 0.00 | 1.86 | 0.00 | 0.95 | 12.47 | 355.10 | 13.10 | 293.44 | 0.2423 | -872.0 | -761.2 | |
| 0.00 | 1.24 | 0.00 | 0.63 | 12.77 | 354.23 | 12.23 | 295.99 | 0.2309 | 664.0 | 442.3 | |
| 0.00 | 3.73 | 0.00 | 1.89 | 12.51 | 353.71 | 11.71 | 295.84 | 0.2212 | -757.0 | -632.1 | |
| 0.00 | 1.69 | 0.00 | 0.86 | 16.47 | 353.55 | 11.55 | 310.56 | 0.2538 | -741.0 | -503.6 | |
| 0.00 | 3.37 | 0.00 | 1.71 | 13.10 | 353.30 | 11.30 | 299.05 | 0.2193 | -489.0 | -607.4 | |
| 0.00 | 1.51 | 0.00 | 0.76 | 13.66 | 352.38 | 10.38 | 303.40 | 0.2107 | -653.0 | -562.7 | |
| 0.00 | 1.51 | 0.00 | 0.76 | 14.22 | 351.77 | 9.77 | 307.20 | 0.2075 | -815.0 | -606.0 | |
| 0.00 | 1.95 | 0.00 | 1.00 | 20.35 | 347.97 | 5.96 | 336.96 | 0.2501 | 821.0 | 587.1 | |
| 0.00 | 0.89 | 0.00 | 0.44 | 12.99 | 347.67 | 5.67 | 316.79 | 0.1412 | 873.0 | 685.0 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 14.44 | 345.93 | 3.92 | 332.46 | 0.1440 | 816.0 | 498.3 | |
| 0.00 | 1.51 | 0.00 | 0.76 | 17.42 | 345.99 | 3.99 | 339.62 | 0.1914 | 860.0 | 623.5 | |
| 0.00 | 4.35 | 0.00 | 2.17 | 14.35 | 345.64 | 3.64 | 333.88 | 0.1405 | 922.0 | 744.3 | |
| 0.00 | 1.60 | 0.00 | 0.80 | 15.73 | 344.42 | 2.42 | 344.79 | 0.1554 | 957.0 | 800.7 | |
| 0.00 | 1.51 | 0.00 | 0.76 | 17.80 | 344.22 | 2.22 | 348.71 | 0.1895 | 929.0 | 683.5 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 15.73 | 343.60 | 1.60 | 349.78 | 0.1524 | 852.0 | 640.0 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 18.82 | 341.50 | -0.50 | 2.33 | 0.2035 | 851.0 | 586.0 | |
| 0.00 | 0.80 | 0.00 | 0.40 | 14.79 | 340.35 | -1.65 | 11.79 | 0.1365 | 813.0 | 676.7 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 17.93 | 340.30 | -1.70 | 8.58 | 0.1902 | 757.0 | 668.3 | |
| 0.00 | 1.24 | 0.00 | 0.63 | 19.32 | 340.26 | -1.74 | 7.76 | 0.2137 | 541.0 | 427.6 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 15.22 | 340.01 | -1.99 | 13.44 | 0.1450 | 831.0 | 732.8 | |
| 0.00 | 2.40 | 0.00 | 1.20 | 15.37 | 339.91 | -2.09 | 13.79 | 0.1480 | 810.0 | 672.6 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 14.97 | 339.89 | -2.11 | 14.67 | 0.1414 | 792.0 | 663.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
