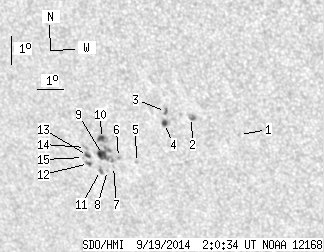

SDO HMI 2014-09-19 02:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.99 | 49.84 | 10.01 | 33.16 | -21.21 | 310.62 | -31.38 | 133.37 | 0.6695 | -441.6 | -335.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-19 02:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.78 | -20.52 | 315.22 | -26.78 | 136.96 | 0.6205 | 591.0 | 460.8 | |
| 0.00 | 4.08 | 0.00 | 2.60 | -20.04 | 313.57 | -28.43 | 134.72 | 0.6316 | 821.0 | 637.0 | |
| 0.80 | 2.57 | 0.51 | 1.65 | -19.90 | 312.65 | -29.35 | 133.65 | 0.6393 | 852.1 | 656.7 | |
| 2.13 | 4.17 | 1.38 | 2.69 | -20.31 | 312.53 | -29.47 | 134.02 | 0.6440 | 783.8 | 401.2 | |
| 0.00 | 1.15 | 0.00 | 0.77 | -21.73 | 311.16 | -30.84 | 134.41 | 0.6690 | -666.0 | -556.4 | |
| 0.00 | 1.24 | 0.00 | 0.83 | -21.60 | 310.51 | -31.49 | 133.68 | 0.6740 | -797.0 | -649.7 | |
| 0.00 | 0.62 | 0.00 | 0.42 | -21.93 | 310.23 | -31.77 | 133.82 | 0.6792 | -506.0 | -452.7 | |
| 0.00 | 0.62 | 0.00 | 0.42 | -22.08 | 309.96 | -32.04 | 133.76 | 0.6829 | -664.0 | -546.1 | |
| 6.65 | 17.03 | 4.48 | 11.44 | -21.54 | 309.91 | -32.09 | 133.09 | 0.6790 | -918.8 | -734.5 | |
| 2.66 | 6.56 | 1.78 | 4.39 | -20.99 | 310.01 | -31.99 | 132.54 | 0.6737 | -925.5 | -679.7 | |
| 0.00 | 2.84 | 0.00 | 1.93 | -22.10 | 309.69 | -32.31 | 133.55 | 0.6856 | -669.0 | -551.1 | |
| 1.15 | 2.66 | 0.78 | 1.81 | -21.89 | 309.28 | -32.72 | 132.96 | 0.6877 | -562.2 | -419.5 | |
| 1.60 | 2.93 | 1.08 | 1.99 | -21.61 | 309.31 | -32.69 | 132.67 | 0.6852 | -787.8 | -619.2 | |
| 0.00 | 1.86 | 0.00 | 1.26 | -21.34 | 309.31 | -32.69 | 132.35 | 0.6831 | -673.0 | -539.1 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -21.69 | 309.14 | -32.86 | 132.62 | 0.6874 | -294.0 | -289.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
