SDO HMI 2014-09-19 04:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 24.22 | 0.00 | 12.15 | 7.58 | 336.05 | -4.85 | 152.36 | 0.1228 | -235.1 | -189.7 | |
|
previous
or next observation for the same group /

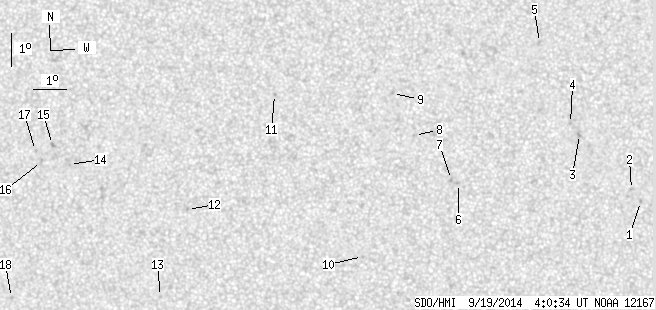

back to the solar disc SDO HMI 2014-09-19 04:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.62 | 6.61 | 345.30 | 4.40 | 263.30 | 0.0770 | -791.0 | -661.9 | |
| 0.00 | 1.69 | 0.00 | 0.84 | 6.97 | 345.03 | 4.13 | 267.89 | 0.0718 | -816.0 | -594.8 | |
| 0.00 | 1.95 | 0.00 | 0.97 | 8.64 | 343.46 | 2.56 | 300.81 | 0.0516 | -1272.0 | -1012.4 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 8.98 | 343.19 | 2.29 | 309.17 | 0.0510 | -1020.0 | -742.5 | |
| 0.00 | 1.69 | 0.00 | 0.84 | 11.42 | 342.26 | 1.35 | 342.78 | 0.0785 | -828.0 | -693.6 | |
| 0.00 | 1.69 | 0.00 | 0.84 | 7.18 | 339.78 | -1.13 | 88.14 | 0.0196 | -868.0 | -644.8 | |
| 0.00 | 1.77 | 0.00 | 0.88 | 7.30 | 339.56 | -1.34 | 83.26 | 0.0235 | -897.0 | -734.2 | |
| 0.00 | 1.42 | 0.00 | 0.70 | 8.62 | 338.43 | -2.47 | 58.72 | 0.0501 | -835.0 | -702.5 | |
| 0.00 | 0.89 | 0.00 | 0.44 | 9.88 | 337.75 | -3.15 | 48.45 | 0.0727 | -936.0 | -660.5 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 4.97 | 336.87 | -4.03 | 118.28 | 0.0799 | -774.0 | -582.5 | |
| 0.00 | 0.71 | 0.00 | 0.35 | 9.82 | 334.13 | -6.77 | 67.75 | 0.1261 | -828.0 | -752.2 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 6.31 | 331.53 | -9.38 | 94.54 | 0.1632 | 787.0 | 677.3 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 3.67 | 330.73 | -10.17 | 108.39 | 0.1865 | 733.0 | 514.6 | |
| 0.00 | 0.80 | 0.00 | 0.41 | 7.58 | 327.85 | -13.06 | 87.22 | 0.2252 | 858.0 | 697.9 | |
| 0.00 | 1.95 | 0.00 | 0.99 | 8.17 | 327.30 | -13.61 | 84.75 | 0.2349 | 961.0 | 810.2 | |
| 0.00 | 1.77 | 0.00 | 0.91 | 7.65 | 326.97 | -13.93 | 87.01 | 0.2401 | 742.0 | 640.5 | |
| 0.00 | 1.24 | 0.00 | 0.63 | 7.97 | 326.77 | -14.13 | 85.68 | 0.2436 | 808.0 | 707.6 | |
| 0.00 | 1.24 | 0.00 | 0.64 | 3.52 | 326.13 | -14.77 | 103.05 | 0.2625 | 745.0 | 514.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
