SDO HMI 2014-09-19 06:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.13 | 132.05 | 56.32 | 309.48 | -9.41 | 263.77 | -76.04 | 101.33 | 0.9763 | 152.1 | -49.6 | |
|
previous
or next observation for the same group /

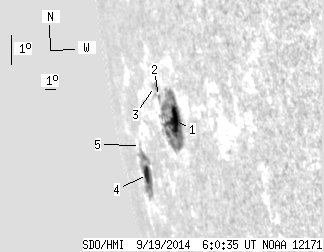

back to the solar disc SDO HMI 2014-09-19 06:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.33 | 88.03 | 31.95 | 175.99 | -8.56 | 265.90 | -73.90 | 100.83 | 0.9684 | 422.9 | 32.0 | |
| 0.35 | 3.99 | 0.76 | 8.70 | -8.01 | 264.32 | -75.48 | 100.00 | 0.9744 | -154.2 | -270.3 | |
| 0.00 | 3.11 | 0.00 | 6.85 | -7.74 | 263.97 | -75.84 | 99.68 | 0.9756 | -170.0 | -67.9 | |
| 7.45 | 36.12 | 23.61 | 115.37 | -10.90 | 260.54 | -79.27 | 102.30 | 0.9882 | -169.8 | -150.8 | |
| 0.00 | 0.80 | 0.00 | 2.57 | -10.03 | 260.22 | -79.59 | 101.38 | 0.9886 | -350.0 | -280.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
