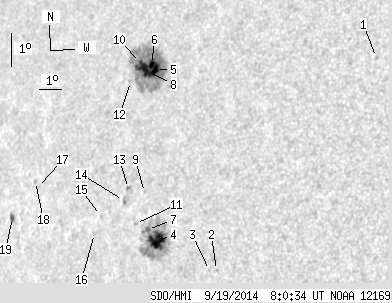

SDO HMI 2014-09-19 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.24 | 231.06 | 31.51 | 172.08 | 8.10 | 290.06 | -48.65 | 85.49 | 0.7482 | -489.8 | -258.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-19 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.51 | 0.00 | 0.96 | 11.51 | 299.33 | -39.39 | 80.50 | 0.6327 | -553.0 | -383.4 | |
| 0.00 | 0.98 | 0.00 | 0.68 | 4.58 | 293.59 | -45.12 | 90.64 | 0.7087 | 702.0 | 576.4 | |
| 0.00 | 0.71 | 0.00 | 0.50 | 4.56 | 293.29 | -45.42 | 90.64 | 0.7124 | 373.0 | 359.6 | |
| 20.05 | 88.56 | 14.72 | 65.09 | 5.26 | 290.93 | -47.78 | 89.39 | 0.7398 | -832.5 | -254.6 | |
| 4.44 | 123.78 | 3.29 | 92.53 | 10.36 | 290.06 | -48.65 | 82.45 | 0.7472 | -1184.2 | -345.6 | |
| 2.75 | -5.00 | 2.05 | -5.00 | 10.50 | 289.85 | -48.86 | 82.27 | 0.7496 | -971.3 | 999999 | |
| 1.51 | -4.00 | 1.12 | -4.00 | 5.54 | 290.45 | -48.27 | 88.94 | 0.7452 | -408.9 | 999999 | |
| 10.47 | -5.00 | 7.84 | -5.00 | 10.29 | 289.61 | -49.10 | 82.54 | 0.7524 | -823.5 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.59 | 6.64 | 290.18 | -48.53 | 87.45 | 0.7473 | -259.0 | -203.6 | |
| 0.80 | -5.00 | 0.60 | -5.00 | 10.51 | 289.33 | -49.38 | 82.25 | 0.7555 | -643.1 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.73 | 5.67 | 289.88 | -48.83 | 88.71 | 0.7516 | -354.0 | -286.0 | |
| 0.00 | 1.51 | 0.00 | 1.14 | 9.90 | 288.98 | -49.73 | 83.05 | 0.7595 | 139.0 | 33.8 | |
| 0.00 | 1.86 | 0.00 | 1.40 | 6.69 | 289.43 | -49.28 | 87.32 | 0.7559 | 719.0 | 617.3 | |
| 0.00 | 1.86 | 0.00 | 1.41 | 6.31 | 289.25 | -49.47 | 87.80 | 0.7583 | 584.0 | 549.2 | |
| 0.00 | 0.44 | 0.00 | 0.34 | 5.76 | 288.23 | -50.49 | 88.43 | 0.7701 | 573.0 | 506.8 | |
| 0.00 | 1.77 | 0.00 | 1.38 | 5.20 | 288.00 | -50.71 | 89.14 | 0.7731 | 390.0 | 357.0 | |
| 0.00 | 0.89 | 0.00 | 0.74 | 6.30 | 285.03 | -53.68 | 87.44 | 0.8039 | 494.0 | 448.5 | |
| 0.00 | 1.33 | 0.00 | 1.11 | 6.47 | 284.90 | -53.81 | 87.21 | 0.8051 | 424.0 | 365.3 | |
| 2.22 | 4.08 | 1.89 | 3.48 | 5.27 | 283.87 | -54.84 | 88.59 | 0.8166 | 475.1 | 285.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
