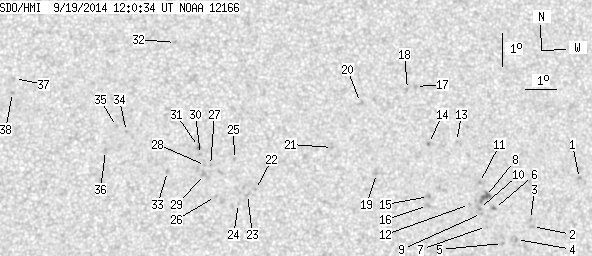

SDO HMI 2014-09-19 12:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 60.75 | 0.00 | 31.45 | 13.40 | 351.62 | 15.10 | 296.75 | 0.2837 | -129.6 | -210.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-19 12:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.51 | 0.00 | 0.81 | 12.97 | 358.94 | 22.42 | 286.64 | 0.3896 | -875.0 | -765.1 | |
| 0.00 | 1.95 | 0.00 | 1.03 | 11.59 | 357.26 | 20.74 | 283.90 | 0.3590 | -878.0 | -600.6 | |
| 0.00 | 1.24 | 0.00 | 0.66 | 11.80 | 357.21 | 20.69 | 284.51 | 0.3588 | -720.0 | -625.2 | |
| 0.00 | 1.33 | 0.00 | 0.70 | 11.22 | 356.71 | 20.19 | 283.14 | 0.3491 | -1120.0 | -874.1 | |
| 0.00 | 1.33 | 0.00 | 0.70 | 11.12 | 356.24 | 19.72 | 283.08 | 0.3415 | -972.0 | -830.4 | |
| 0.00 | 1.77 | 0.00 | 0.93 | 12.18 | 356.06 | 19.54 | 286.26 | 0.3421 | -906.0 | -712.3 | |
| 0.00 | 0.71 | 0.00 | 0.37 | 11.65 | 355.76 | 19.24 | 284.90 | 0.3354 | -656.0 | -605.0 | |
| 0.00 | 7.45 | 0.00 | 3.92 | 12.56 | 355.80 | 19.28 | 287.51 | 0.3394 | -1073.0 | -838.0 | |
| 0.00 | 1.33 | 0.00 | 0.70 | 12.05 | 355.63 | 19.11 | 286.15 | 0.3347 | -1038.0 | -774.9 | |
| 0.00 | 1.95 | 0.00 | 1.03 | 12.20 | 355.57 | 19.05 | 286.64 | 0.3345 | -1122.0 | -959.5 | |
| 0.00 | 1.42 | 0.00 | 0.75 | 12.99 | 355.64 | 19.12 | 288.86 | 0.3387 | -938.0 | -716.8 | |
| 0.00 | 0.89 | 0.00 | 0.47 | 12.34 | 355.26 | 18.74 | 287.25 | 0.3301 | -810.0 | -654.9 | |
| 0.00 | 0.80 | 0.00 | 0.42 | 14.26 | 354.99 | 18.47 | 293.04 | 0.3351 | -469.0 | -362.4 | |
| 0.00 | 1.06 | 0.00 | 0.56 | 14.24 | 354.07 | 17.55 | 293.90 | 0.3211 | -1002.0 | -876.4 | |
| 0.00 | 2.31 | 0.00 | 1.20 | 12.63 | 353.95 | 17.43 | 289.18 | 0.3108 | -1008.0 | -758.1 | |
| 0.00 | 2.57 | 0.00 | 1.34 | 12.36 | 353.90 | 17.38 | 288.38 | 0.3088 | -770.0 | -645.4 | |
| 0.00 | 1.69 | 0.00 | 0.88 | 15.98 | 353.80 | 17.28 | 299.19 | 0.3285 | -811.0 | -597.2 | |
| 0.00 | 0.80 | 0.00 | 0.42 | 15.90 | 353.53 | 17.01 | 299.31 | 0.3240 | -809.0 | -697.7 | |
| 0.00 | 1.15 | 0.00 | 0.60 | 13.39 | 352.32 | 15.80 | 293.24 | 0.2896 | -969.0 | -770.8 | |
| 0.00 | 2.48 | 0.00 | 1.29 | 15.56 | 351.97 | 15.45 | 300.50 | 0.2991 | -706.0 | -578.5 | |
| 0.00 | 1.33 | 0.00 | 0.69 | 14.22 | 350.97 | 14.45 | 297.80 | 0.2746 | -894.0 | -689.5 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 13.02 | 348.45 | 11.93 | 297.64 | 0.2283 | 732.0 | 605.8 | |
| 0.00 | 2.13 | 0.00 | 1.08 | 12.87 | 348.19 | 11.67 | 297.55 | 0.2234 | 532.0 | 510.6 | |
| 0.00 | 0.44 | 0.00 | 0.22 | 12.61 | 347.89 | 11.37 | 297.02 | 0.2170 | 820.0 | 620.2 | |
| 0.00 | 1.15 | 0.00 | 0.59 | 13.94 | 347.83 | 11.31 | 302.50 | 0.2267 | 811.0 | 614.9 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 12.84 | 347.18 | 10.66 | 299.45 | 0.2080 | 832.0 | 692.1 | |
| 0.00 | 1.24 | 0.00 | 0.63 | 13.78 | 347.06 | 10.54 | 303.61 | 0.2143 | 774.0 | 573.3 | |
| 0.00 | 0.98 | 0.00 | 0.49 | 13.78 | 346.91 | 10.39 | 304.00 | 0.2122 | 849.0 | 696.6 | |
| 0.00 | 4.35 | 0.00 | 2.20 | 13.51 | 346.86 | 10.34 | 303.00 | 0.2091 | 875.0 | 678.1 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 14.12 | 346.76 | 10.24 | 305.69 | 0.2133 | 835.0 | 732.6 | |
| 0.00 | 1.24 | 0.00 | 0.63 | 14.36 | 346.71 | 10.19 | 306.77 | 0.2150 | 781.0 | 705.9 | |
| 0.00 | 1.15 | 0.00 | 0.59 | 17.55 | 346.14 | 9.62 | 318.90 | 0.2436 | 777.0 | 666.4 | |
| 0.00 | 1.51 | 0.00 | 0.76 | 13.63 | 345.70 | 9.18 | 306.55 | 0.1940 | 847.0 | 622.9 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 14.87 | 344.46 | 7.94 | 315.51 | 0.1915 | 913.0 | 706.0 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 15.02 | 344.16 | 7.64 | 317.21 | 0.1898 | 786.0 | 608.2 | |
| 0.00 | 1.69 | 0.00 | 0.85 | 14.30 | 343.79 | 7.27 | 315.81 | 0.1766 | 912.0 | 704.4 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 16.53 | 340.99 | 4.47 | 335.48 | 0.1810 | 738.0 | 449.8 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 16.10 | 340.92 | 4.40 | 334.79 | 0.1739 | 808.0 | 701.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
