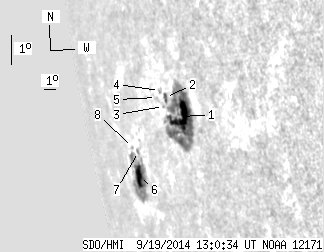

SDO HMI 2014-09-19 13:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.21 | 179.48 | 63.23 | 321.16 | -9.42 | 263.79 | -72.18 | 102.01 | 0.9601 | 113.9 | -30.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-19 13:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.26 | 119.89 | 34.54 | 188.07 | -8.49 | 266.06 | -69.91 | 101.47 | 0.9492 | 418.0 | 39.8 | |
| 1.95 | 3.81 | 3.23 | 6.32 | -8.06 | 264.76 | -71.21 | 100.78 | 0.9555 | 93.0 | -21.0 | |
| 0.00 | 0.89 | 0.00 | 1.50 | -8.37 | 264.42 | -71.55 | 101.05 | 0.9575 | -310.0 | -269.1 | |
| 0.00 | 1.86 | 0.00 | 3.16 | -7.90 | 264.24 | -71.73 | 100.53 | 0.9580 | -208.0 | -121.5 | |
| 0.00 | 1.15 | 0.00 | 2.02 | -8.17 | 263.82 | -72.15 | 100.73 | 0.9602 | -315.0 | -293.5 | |
| 11.00 | 48.86 | 25.46 | 113.32 | -11.07 | 260.15 | -75.82 | 103.03 | 0.9776 | -217.2 | -114.4 | |
| 0.00 | 2.04 | 0.00 | 4.50 | -10.23 | 260.65 | -75.32 | 102.27 | 0.9752 | -398.0 | -446.3 | |
| 0.00 | 0.98 | 0.00 | 2.27 | -10.19 | 259.92 | -76.05 | 102.11 | 0.9779 | -204.0 | -191.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
