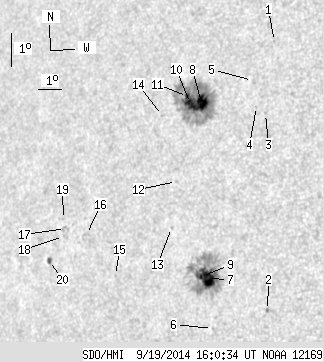

SDO HMI 2014-09-19 16:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.29 | 257.23 | 33.90 | 177.13 | 8.21 | 290.04 | -44.28 | 85.55 | 0.6960 | -569.1 | -232.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-19 16:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.58 | 12.56 | 292.70 | -41.61 | 79.05 | 0.6625 | -482.0 | -432.8 | |
| 0.00 | 1.42 | 0.00 | 0.93 | 4.48 | 293.47 | -40.85 | 91.40 | 0.6545 | 553.0 | 551.2 | |
| 0.00 | 0.80 | 0.00 | 0.53 | 10.38 | 292.72 | -41.59 | 82.36 | 0.6611 | -626.0 | -578.3 | |
| 0.00 | 0.27 | 0.00 | 0.18 | 10.56 | 292.32 | -41.99 | 82.10 | 0.6663 | -545.0 | -601.0 | |
| 0.00 | 0.89 | 0.00 | 0.59 | 11.32 | 292.02 | -42.29 | 80.96 | 0.6704 | -634.0 | -541.2 | |
| 0.00 | 1.15 | 0.00 | 0.78 | 3.75 | 291.28 | -43.04 | 92.14 | 0.6838 | 688.0 | 521.3 | |
| 16.93 | 98.12 | 11.49 | 66.69 | 5.24 | 290.96 | -43.36 | 89.93 | 0.6860 | -877.7 | -274.4 | |
| 16.49 | 139.86 | 11.33 | 96.55 | 10.49 | 290.02 | -44.30 | 82.25 | 0.6954 | -1047.1 | -281.5 | |
| 2.13 | -7.00 | 1.45 | -7.00 | 5.28 | 290.71 | -43.61 | 89.84 | 0.6891 | -651.2 | 999999 | |
| 9.57 | -8.00 | 6.63 | -8.00 | 10.42 | 289.56 | -44.76 | 82.36 | 0.7011 | -765.6 | 999999 | |
| 2.84 | -8.00 | 1.97 | -8.00 | 10.62 | 289.39 | -44.93 | 82.08 | 0.7031 | -644.0 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.92 | 8.03 | 289.34 | -44.98 | 85.76 | 0.7042 | 598.0 | 444.3 | |
| 0.00 | 0.62 | 0.00 | 0.43 | 6.64 | 289.30 | -45.02 | 87.74 | 0.7055 | 565.0 | 492.6 | |
| 0.00 | 1.06 | 0.00 | 0.75 | 9.96 | 288.42 | -45.90 | 83.02 | 0.7149 | -606.0 | -454.4 | |
| 0.00 | 0.89 | 0.00 | 0.64 | 4.98 | 287.01 | -47.31 | 89.80 | 0.7345 | 385.0 | 377.9 | |
| 0.00 | 2.22 | 0.00 | 1.65 | 6.09 | 285.58 | -48.74 | 88.15 | 0.7502 | 293.0 | 317.0 | |
| 0.00 | 3.55 | 0.00 | 2.70 | 6.18 | 284.59 | -49.73 | 87.94 | 0.7614 | 516.0 | 433.1 | |
| 0.00 | 0.44 | 0.00 | 0.34 | 5.94 | 284.52 | -49.80 | 88.26 | 0.7623 | 402.0 | 339.8 | |
| 0.00 | 0.62 | 0.00 | 0.47 | 6.44 | 284.46 | -49.86 | 87.59 | 0.7626 | 290.0 | 350.6 | |
| 1.33 | 3.10 | 1.03 | 2.40 | 5.15 | 283.95 | -50.37 | 89.22 | 0.7694 | 561.4 | 407.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
