SDO HMI 2014-09-19 16:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.91 | 208.47 | 58.76 | 338.46 | -9.41 | 263.93 | -70.39 | 102.34 | 0.9512 | 108.5 | 5.3 | |
|
previous
or next observation for the same group /

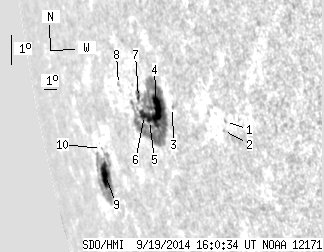

back to the solar disc SDO HMI 2014-09-19 16:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 1.22 | -8.12 | 271.55 | -62.77 | 102.58 | 0.9037 | 405.0 | 357.9 | |
| 0.00 | 0.80 | 0.00 | 0.93 | -8.43 | 271.33 | -62.99 | 102.85 | 0.9057 | 352.0 | 357.4 | |
| 0.00 | 1.42 | 0.00 | 1.88 | -8.13 | 267.74 | -66.58 | 101.75 | 0.9294 | 507.0 | 453.1 | |
| 15.24 | 145.36 | 21.52 | 210.65 | -8.38 | 266.38 | -67.94 | 101.74 | 0.9380 | 601.2 | 50.7 | |
| 1.15 | -4.00 | 1.69 | -4.00 | -8.77 | 265.64 | -68.68 | 102.01 | 0.9427 | 204.8 | 999999 | |
| 4.25 | -4.00 | 6.36 | -4.00 | -8.66 | 265.26 | -69.06 | 101.82 | 0.9448 | 179.5 | 999999 | |
| 0.62 | -4.00 | 0.94 | -4.00 | -8.14 | 264.94 | -69.38 | 101.22 | 0.9460 | -79.0 | 999999 | |
| 0.00 | 1.33 | 0.00 | 2.19 | -7.95 | 263.19 | -71.12 | 100.69 | 0.9550 | -509.0 | -423.9 | |
| 13.65 | 57.79 | 28.25 | 120.16 | -11.15 | 260.06 | -74.26 | 103.40 | 0.9718 | -274.7 | -83.8 | |
| 0.00 | 0.71 | 0.00 | 1.43 | -10.30 | 260.19 | -74.12 | 102.55 | 0.9706 | -427.0 | -446.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
