SDO HMI 2014-09-19 17:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 26.85 | 0.00 | 13.46 | 8.92 | 334.15 | 0.38 | 186.33 | 0.1256 | -44.7 | -32.3 | |
|
previous
or next observation for the same group /

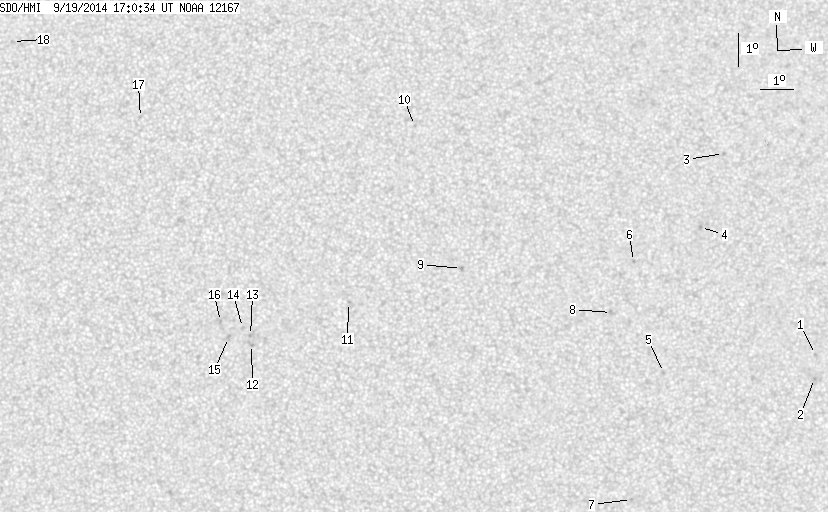

back to the solar disc SDO HMI 2014-09-19 17:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.42 | 0.00 | 0.72 | 7.00 | 345.06 | 11.29 | 270.10 | 0.1952 | -878.0 | -656.6 | |
| 0.00 | 1.24 | 0.00 | 0.63 | 6.28 | 345.01 | 11.24 | 266.37 | 0.1951 | -975.0 | -785.6 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 13.12 | 342.40 | 8.63 | 305.94 | 0.1813 | 925.0 | 719.8 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 10.90 | 341.61 | 7.84 | 296.60 | 0.1506 | -924.0 | -696.5 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 6.55 | 340.38 | 6.62 | 265.49 | 0.1154 | -941.0 | -716.2 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 9.91 | 339.52 | 5.76 | 296.51 | 0.1109 | -942.0 | -749.6 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 2.74 | 339.37 | 5.61 | 232.20 | 0.1241 | -794.0 | -587.6 | |
| 0.00 | 2.75 | 0.00 | 1.37 | 8.38 | 338.82 | 5.06 | 284.48 | 0.0905 | -949.0 | -766.6 | |
| 0.00 | 2.22 | 0.00 | 1.10 | 9.74 | 334.26 | 0.49 | 349.52 | 0.0467 | -1049.0 | -794.5 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 14.06 | 332.81 | -0.95 | 7.60 | 0.1225 | -797.0 | -593.3 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 8.71 | 330.81 | -2.95 | 61.25 | 0.0583 | 834.0 | 727.2 | |
| 0.00 | 2.39 | 0.00 | 1.19 | 7.42 | 327.87 | -5.90 | 86.66 | 0.1025 | 813.0 | 750.1 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 7.69 | 327.83 | -5.93 | 84.05 | 0.1034 | 991.0 | 806.1 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 7.93 | 327.59 | -6.18 | 82.06 | 0.1081 | 861.0 | 669.2 | |
| 0.00 | 2.75 | 0.00 | 1.37 | 7.62 | 327.16 | -6.60 | 85.17 | 0.1149 | 928.0 | 722.7 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 8.10 | 326.91 | -6.85 | 81.32 | 0.1201 | 912.0 | 759.5 | |
| 0.00 | 1.24 | 0.00 | 0.63 | 14.22 | 324.26 | -9.50 | 51.96 | 0.2042 | 617.0 | 543.6 | |
| 0.00 | 0.80 | 0.00 | 0.41 | 16.43 | 320.06 | -13.71 | 53.98 | 0.2822 | 563.0 | 420.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
