SDO HMI 2014-09-19 17:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.87 | 205.26 | 58.95 | 322.03 | -9.38 | 263.99 | -69.78 | 102.43 | 0.9480 | 184.9 | -17.1 | |
|
previous
or next observation for the same group /

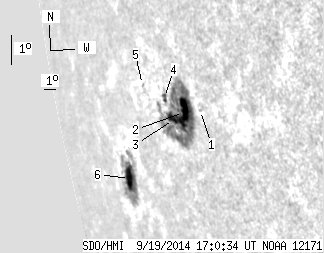

back to the solar disc SDO HMI 2014-09-19 17:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.33 | 0.00 | 1.72 | -8.15 | 267.80 | -65.97 | 101.90 | 0.9256 | 486.0 | 422.4 | |
| 17.28 | 142.33 | 23.78 | 200.32 | -8.37 | 266.40 | -67.37 | 101.85 | 0.9346 | 637.3 | 57.8 | |
| 5.32 | -2.00 | 7.69 | -2.00 | -8.70 | 265.46 | -68.31 | 102.01 | 0.9405 | 239.0 | 999999 | |
| 2.13 | 5.14 | 3.12 | 7.54 | -8.08 | 264.94 | -68.83 | 101.26 | 0.9428 | 118.4 | 46.6 | |
| 0.00 | 0.80 | 0.00 | 1.28 | -7.90 | 263.05 | -70.72 | 100.71 | 0.9529 | -363.0 | -343.8 | |
| 12.14 | 55.66 | 24.36 | 111.17 | -11.19 | 259.95 | -73.82 | 103.52 | 0.9701 | -255.2 | -169.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
