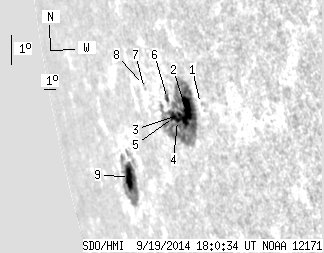

SDO HMI 2014-09-19 18:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.75 | 210.91 | 58.26 | 322.69 | -9.38 | 264.00 | -69.21 | 102.54 | 0.9449 | 181.9 | -17.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-19 18:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.71 | 0.00 | 0.90 | -7.97 | 267.68 | -65.54 | 101.81 | 0.9226 | 494.0 | 498.9 | |
| 18.34 | 145.24 | 24.58 | 199.30 | -8.36 | 266.49 | -66.73 | 101.97 | 0.9307 | 690.2 | 63.3 | |
| 0.89 | -2.00 | 1.22 | -2.00 | -8.52 | 265.87 | -67.34 | 102.02 | 0.9346 | 358.3 | 999999 | |
| 1.42 | -2.00 | 1.98 | -2.00 | -8.74 | 265.63 | -67.58 | 102.19 | 0.9363 | 292.4 | 999999 | |
| 3.10 | -2.00 | 4.38 | -2.00 | -8.68 | 265.33 | -67.88 | 102.07 | 0.9380 | 198.6 | 999999 | |
| 2.04 | 5.05 | 2.91 | 7.20 | -8.12 | 265.04 | -68.17 | 101.43 | 0.9391 | 87.5 | 38.8 | |
| 0.00 | 0.80 | 0.00 | 1.25 | -8.05 | 263.08 | -70.13 | 100.98 | 0.9500 | -426.0 | -442.0 | |
| 0.00 | 0.80 | 0.00 | 1.25 | -7.93 | 263.04 | -70.18 | 100.85 | 0.9501 | -435.0 | -382.9 | |
| 11.96 | 58.31 | 23.19 | 112.79 | -11.19 | 259.95 | -73.26 | 103.62 | 0.9677 | -327.4 | -163.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
