SDO HMI 2014-09-19 19:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.54 | 0.00 | 7.27 | 8.90 | 335.65 | 2.99 | 230.93 | 0.1149 | -233.0 | -319.2 | |
|
previous
or next observation for the same group /

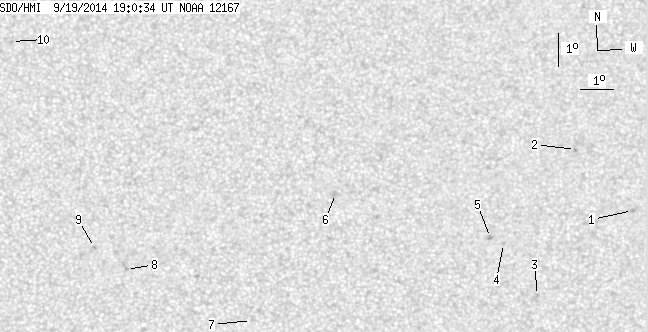

back to the solar disc SDO HMI 2014-09-19 19:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.86 | 0.00 | 0.94 | 9.10 | 343.40 | 10.74 | 281.24 | 0.1884 | -1042.0 | -778.2 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 10.97 | 341.69 | 9.03 | 294.01 | 0.1694 | -967.0 | -798.5 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 6.60 | 340.41 | 7.75 | 266.57 | 0.1348 | -905.0 | -685.8 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 8.18 | 339.40 | 6.74 | 279.43 | 0.1183 | -781.0 | -600.8 | |
| 0.00 | 2.04 | 0.00 | 1.02 | 8.37 | 339.00 | 6.34 | 281.61 | 0.1121 | -949.0 | -885.5 | |
| 0.00 | 2.66 | 0.00 | 1.32 | 9.74 | 334.29 | 1.62 | 328.54 | 0.0538 | -870.0 | -618.1 | |
| 0.00 | 0.89 | 0.00 | 0.44 | 5.92 | 331.72 | -0.94 | 142.24 | 0.0267 | 467.0 | 215.8 | |
| 0.00 | 1.33 | 0.00 | 0.66 | 7.44 | 327.92 | -4.74 | 85.89 | 0.0825 | 822.0 | 667.3 | |
| 0.00 | 1.33 | 0.00 | 0.66 | 8.09 | 326.94 | -5.72 | 79.97 | 0.1007 | 981.0 | 810.4 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 14.27 | 324.23 | -8.43 | 48.51 | 0.1906 | 914.0 | 680.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
