SDO HMI 2014-09-19 21:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.85 | 26.93 | 3.58 | 16.32 | -21.11 | 310.34 | -21.22 | 144.09 | 0.5769 | -264.6 | -298.0 | |
|
previous
or next observation for the same group /

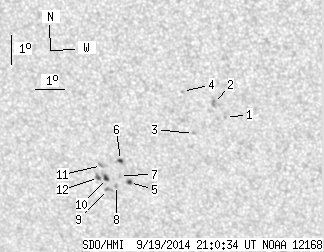

back to the solar disc SDO HMI 2014-09-19 21:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.57 | -19.40 | 313.84 | -17.71 | 146.95 | 0.5283 | 760.0 | 603.7 | |
| 0.00 | 2.57 | 0.00 | 1.49 | -18.94 | 313.49 | -18.06 | 145.94 | 0.5256 | 906.0 | 732.2 | |
| 0.00 | 0.71 | 0.00 | 0.42 | -19.99 | 312.70 | -18.86 | 145.95 | 0.5446 | 735.0 | 628.8 | |
| 0.00 | 1.15 | 0.00 | 0.67 | -18.58 | 312.50 | -19.06 | 144.09 | 0.5298 | 714.0 | 566.2 | |
| 1.51 | 2.39 | 0.92 | 1.46 | -21.76 | 310.25 | -21.31 | 144.62 | 0.5851 | -965.2 | -798.3 | |
| 1.33 | 3.01 | 0.81 | 1.83 | -21.02 | 310.05 | -21.51 | 143.57 | 0.5785 | -723.3 | -571.8 | |
| 0.00 | 1.95 | 0.00 | 1.19 | -21.54 | 309.93 | -21.62 | 143.99 | 0.5852 | -689.0 | -524.5 | |
| 0.00 | 1.77 | 0.00 | 1.09 | -21.89 | 309.77 | -21.78 | 144.17 | 0.5904 | -808.0 | -674.0 | |
| 0.00 | 3.01 | 0.00 | 1.85 | -22.04 | 309.47 | -22.09 | 143.95 | 0.5946 | -838.0 | -585.8 | |
| 1.86 | 4.08 | 1.14 | 2.50 | -21.66 | 309.46 | -22.10 | 143.54 | 0.5905 | -980.8 | -727.0 | |
| 0.00 | 2.22 | 0.00 | 1.35 | -21.22 | 309.36 | -22.20 | 142.94 | 0.5866 | -711.0 | -614.4 | |
| 1.15 | 3.10 | 0.71 | 1.90 | -21.64 | 309.18 | -22.37 | 143.18 | 0.5926 | -761.7 | -506.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
