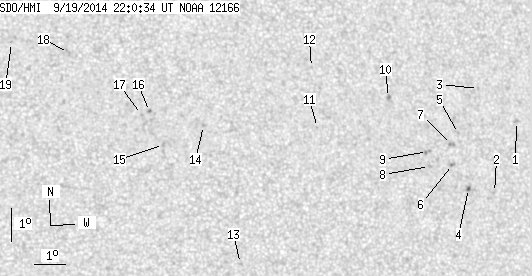

SDO HMI 2014-09-19 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.80 | 31.99 | 0.44 | 17.26 | 12.95 | 353.38 | 22.37 | 287.85 | 0.3905 | -237.9 | -245.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-19 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.30 | 0.00 | 1.30 | 13.13 | 359.16 | 28.15 | 284.50 | 0.4766 | -675.0 | -565.8 | |
| 0.00 | 1.33 | 0.00 | 0.74 | 11.03 | 358.15 | 27.15 | 280.32 | 0.4571 | -727.0 | -569.6 | |
| 0.00 | 0.89 | 0.00 | 0.49 | 14.20 | 357.96 | 26.96 | 287.21 | 0.4621 | -561.0 | -469.7 | |
| 0.80 | 3.10 | 0.44 | 1.71 | 11.20 | 357.28 | 26.27 | 280.90 | 0.4440 | -953.8 | -778.8 | |
| 0.00 | 0.97 | 0.00 | 0.54 | 12.88 | 357.11 | 26.11 | 284.70 | 0.4453 | -669.0 | -572.2 | |
| 0.00 | 2.04 | 0.00 | 1.12 | 11.96 | 356.80 | 25.80 | 282.74 | 0.4384 | -850.0 | -671.3 | |
| 0.00 | 2.84 | 0.00 | 1.56 | 12.56 | 356.83 | 25.83 | 284.09 | 0.4403 | -901.0 | -742.5 | |
| 0.00 | 1.24 | 0.00 | 0.68 | 11.94 | 356.02 | 25.01 | 282.96 | 0.4263 | -859.0 | -727.2 | |
| 0.00 | 3.10 | 0.00 | 1.70 | 12.39 | 356.00 | 24.99 | 284.03 | 0.4271 | -817.0 | -695.9 | |
| 0.00 | 1.86 | 0.00 | 1.01 | 14.09 | 354.85 | 23.85 | 288.54 | 0.4154 | -856.0 | -764.3 | |
| 0.00 | 0.80 | 0.00 | 0.43 | 13.30 | 352.39 | 21.38 | 288.07 | 0.3749 | -835.0 | -683.1 | |
| 0.00 | 0.71 | 0.00 | 0.38 | 15.12 | 352.37 | 21.37 | 292.72 | 0.3830 | -572.0 | -458.1 | |
| 0.00 | 1.42 | 0.00 | 0.74 | 9.31 | 349.57 | 18.57 | 278.04 | 0.3188 | 654.0 | 569.9 | |
| 0.00 | 1.51 | 0.00 | 0.79 | 13.51 | 348.66 | 17.66 | 291.62 | 0.3186 | 625.0 | 499.4 | |
| 0.00 | 1.77 | 0.00 | 0.92 | 12.99 | 347.33 | 16.32 | 291.33 | 0.2953 | 746.0 | 579.2 | |
| 0.00 | 1.24 | 0.00 | 0.64 | 14.00 | 346.95 | 15.94 | 295.00 | 0.2954 | 926.0 | 808.4 | |
| 0.00 | 1.15 | 0.00 | 0.60 | 13.92 | 346.68 | 15.68 | 295.07 | 0.2909 | 757.0 | 687.7 | |
| 0.00 | 2.75 | 0.00 | 1.41 | 15.87 | 344.47 | 13.47 | 304.73 | 0.2738 | 669.0 | 586.0 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 16.23 | 342.67 | 11.66 | 309.61 | 0.2531 | 694.0 | 571.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
