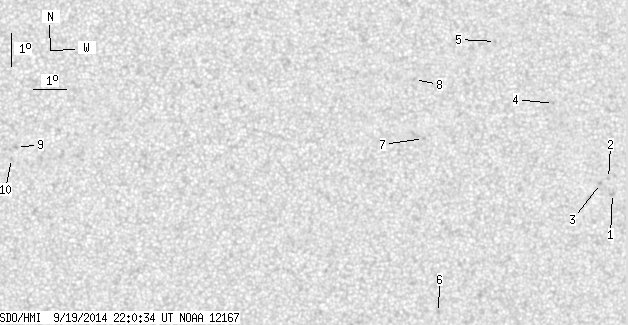

SDO HMI 2014-09-19 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.29 | 0.00 | 6.71 | 7.44 | 339.84 | 8.84 | 238.17 | 0.1810 | -449.2 | -398.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-19 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.13 | 0.00 | 1.09 | 6.39 | 345.30 | 14.29 | 267.87 | 0.2466 | -625.0 | -664.4 | |
| 0.00 | 1.15 | 0.00 | 0.59 | 6.84 | 345.19 | 14.18 | 269.70 | 0.2444 | -800.0 | -537.5 | |
| 0.00 | 1.60 | 0.00 | 0.81 | 6.70 | 344.93 | 13.93 | 269.07 | 0.2402 | -952.0 | -776.3 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 9.15 | 343.55 | 12.54 | 280.10 | 0.2188 | -810.0 | -666.0 | |
| 0.00 | 0.71 | 0.00 | 0.36 | 11.06 | 341.81 | 10.81 | 291.04 | 0.1980 | -822.0 | -656.8 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 2.94 | 339.87 | 8.86 | 245.07 | 0.1705 | -775.0 | -549.5 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 8.19 | 339.49 | 8.49 | 277.75 | 0.1481 | -781.0 | -627.3 | |
| 0.00 | 1.68 | 0.00 | 0.84 | 9.97 | 339.26 | 8.26 | 289.79 | 0.1510 | -792.0 | -586.3 | |
| 0.00 | 1.33 | 0.00 | 0.66 | 8.00 | 327.08 | -3.92 | 77.17 | 0.0697 | 1000.0 | 723.5 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 7.66 | 326.94 | -4.07 | 82.20 | 0.0713 | 865.0 | 689.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
