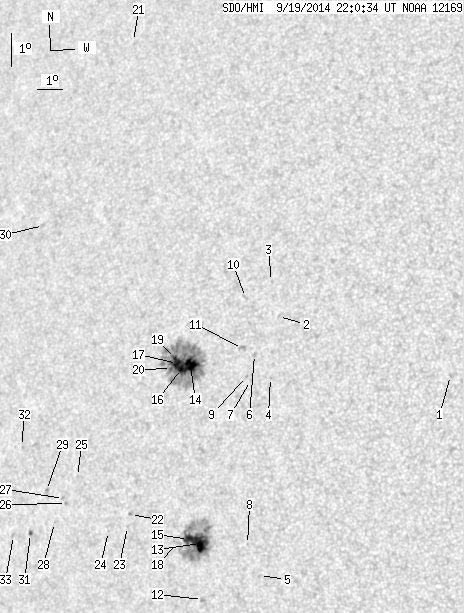

SDO HMI 2014-09-19 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.46 | 267.47 | 36.77 | 174.63 | 8.40 | 290.11 | -40.90 | 85.41 | 0.6528 | -535.4 | -272.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-19 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.72 | 10.93 | 299.91 | -31.09 | 80.62 | 0.5159 | -795.0 | -675.4 | |
| 0.00 | 0.71 | 0.00 | 0.44 | 12.27 | 293.30 | -37.70 | 79.11 | 0.6107 | -717.0 | -642.9 | |
| 0.00 | 0.53 | 0.00 | 0.33 | 13.30 | 292.85 | -38.15 | 77.50 | 0.6181 | -555.0 | -454.5 | |
| 0.00 | 0.71 | 0.00 | 0.44 | 10.42 | 293.28 | -37.72 | 82.16 | 0.6097 | -613.0 | -516.5 | |
| 0.00 | 0.89 | 0.00 | 0.55 | 4.44 | 293.45 | -37.56 | 92.00 | 0.6103 | 673.0 | 514.4 | |
| 0.00 | 1.77 | 0.00 | 1.12 | 11.06 | 292.56 | -38.44 | 81.16 | 0.6198 | -747.0 | -560.1 | |
| 0.00 | 1.15 | 0.00 | 0.73 | 10.27 | 292.52 | -38.48 | 82.44 | 0.6200 | -666.0 | -504.4 | |
| 0.00 | 0.80 | 0.00 | 0.50 | 5.34 | 292.93 | -38.07 | 90.46 | 0.6163 | -515.0 | -392.6 | |
| 0.00 | 0.80 | 0.00 | 0.50 | 10.38 | 292.35 | -38.66 | 82.27 | 0.6223 | -587.0 | -497.7 | |
| 0.00 | 1.95 | 0.00 | 1.24 | 12.74 | 291.92 | -39.08 | 78.52 | 0.6298 | -621.0 | -521.9 | |
| 0.00 | 2.92 | 0.00 | 1.85 | 11.20 | 292.06 | -38.94 | 80.96 | 0.6266 | -662.0 | -554.2 | |
| 0.00 | 2.13 | 0.00 | 1.37 | 3.55 | 291.29 | -39.72 | 93.04 | 0.6409 | 745.0 | 606.4 | |
| 19.41 | 91.99 | 12.50 | 59.37 | 5.23 | 291.10 | -39.90 | 90.39 | 0.6411 | -1003.7 | -319.1 | |
| 14.45 | 141.98 | 9.42 | 92.95 | 10.53 | 290.09 | -40.92 | 82.11 | 0.6524 | -1182.8 | -344.3 | |
| 6.65 | -13.00 | 4.31 | -13.00 | 5.31 | 290.62 | -40.38 | 90.20 | 0.6474 | -651.3 | 999999 | |
| 4.70 | -14.00 | 3.08 | -14.00 | 10.42 | 289.74 | -41.27 | 82.30 | 0.6569 | -955.2 | 999999 | |
| 6.56 | -14.00 | 4.31 | -14.00 | 10.55 | 289.55 | -41.45 | 82.10 | 0.6593 | -801.6 | 999999 | |
| 0.00 | 3.37 | 0.00 | 2.20 | 5.19 | 290.19 | -40.81 | 90.34 | 0.6532 | 199.0 | 155.4 | |
| 1.95 | -14.00 | 1.28 | -14.00 | 10.70 | 289.45 | -41.56 | 81.89 | 0.6607 | -748.8 | 999999 | |
| 1.77 | -14.00 | 1.17 | -14.00 | 10.38 | 289.33 | -41.67 | 82.37 | 0.6621 | -421.6 | 999999 | |
| 0.00 | 0.44 | 0.00 | 0.32 | 20.09 | 285.15 | -45.86 | 68.93 | 0.7245 | -444.0 | -476.6 | |
| 0.00 | 1.33 | 0.00 | 0.89 | 5.87 | 288.22 | -42.78 | 89.07 | 0.6781 | 736.0 | 653.9 | |
| 0.00 | 0.89 | 0.00 | 0.60 | 5.50 | 288.13 | -42.87 | 89.61 | 0.6796 | 602.0 | 520.8 | |
| 0.00 | 0.27 | 0.00 | 0.18 | 5.29 | 287.36 | -43.65 | 89.83 | 0.6896 | 618.0 | 574.3 | |
| 0.00 | 1.06 | 0.00 | 0.74 | 6.82 | 285.88 | -45.12 | 87.48 | 0.7066 | 626.0 | 472.0 | |
| 0.00 | 1.60 | 0.00 | 1.12 | 5.97 | 285.50 | -45.50 | 88.65 | 0.7119 | 740.0 | 661.1 | |
| 0.00 | 1.15 | 0.00 | 0.81 | 6.11 | 285.36 | -45.65 | 88.44 | 0.7136 | 654.0 | 621.8 | |
| 0.00 | 0.62 | 0.00 | 0.44 | 5.36 | 285.04 | -45.96 | 89.46 | 0.7181 | 670.0 | 566.7 | |
| 0.00 | 1.68 | 0.00 | 1.20 | 6.29 | 284.59 | -46.41 | 88.12 | 0.7227 | 668.0 | 559.6 | |
| 0.00 | 1.24 | 0.00 | 0.91 | 14.20 | 282.92 | -48.09 | 77.27 | 0.7419 | -237.0 | -274.0 | |
| 0.97 | 1.68 | 0.70 | 1.22 | 4.93 | 284.02 | -46.98 | 89.92 | 0.7307 | 617.1 | 452.0 | |
| 0.00 | 0.71 | 0.00 | 0.52 | 7.50 | 283.32 | -47.69 | 86.35 | 0.7369 | 495.0 | 504.1 | |
| 0.00 | 1.86 | 0.00 | 1.37 | 4.81 | 283.27 | -47.73 | 90.00 | 0.7397 | 575.0 | 448.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
