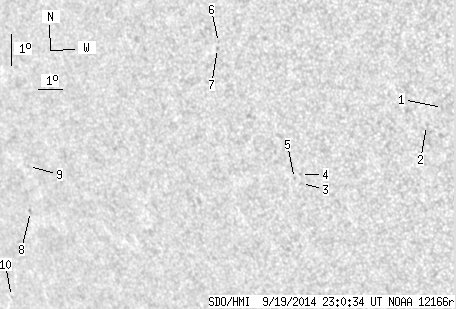

SDO HMI 2014-09-19 23:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.66 | 0.00 | 6.87 | -11.40 | 288.75 | -41.71 | 113.98 | 0.7102 | 403.9 | 398.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-19 23:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.75 | -9.12 | 298.84 | -31.61 | 116.82 | 0.5821 | 308.0 | 342.1 | |
| 0.00 | 0.44 | 0.00 | 0.27 | -9.73 | 298.20 | -32.25 | 117.27 | 0.5939 | 152.0 | 209.6 | |
| 0.00 | 0.89 | 0.00 | 0.59 | -11.92 | 293.23 | -37.22 | 117.00 | 0.6666 | 526.0 | 461.2 | |
| 0.00 | 0.89 | 0.00 | 0.59 | -11.63 | 293.24 | -37.22 | 116.62 | 0.6649 | 698.0 | 572.9 | |
| 0.00 | 0.89 | 0.00 | 0.59 | -11.78 | 292.98 | -37.47 | 116.66 | 0.6687 | 563.0 | 460.0 | |
| 0.00 | 0.97 | 0.00 | 0.65 | -7.70 | 290.57 | -39.89 | 109.69 | 0.6772 | 547.0 | 498.9 | |
| 0.00 | 1.15 | 0.00 | 0.78 | -7.90 | 290.50 | -39.95 | 109.93 | 0.6788 | 527.0 | 435.4 | |
| 0.00 | 1.60 | 0.00 | 1.32 | -13.86 | 281.26 | -49.19 | 113.29 | 0.8023 | 256.0 | 350.7 | |
| 0.00 | 1.06 | 0.00 | 0.86 | -12.39 | 281.56 | -48.89 | 111.69 | 0.7942 | 174.0 | 286.7 | |
| 0.00 | 0.53 | 0.00 | 0.47 | -16.78 | 279.35 | -51.10 | 115.86 | 0.8302 | 288.0 | 362.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
