SDO HMI 2014-09-19 23:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.43 | 0.00 | 5.75 | 7.27 | 335.29 | 4.83 | 171.33 | 0.1419 | 130.3 | 47.1 | |
|
previous
or next observation for the same group /

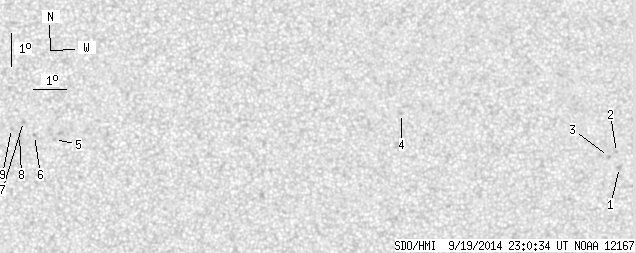

back to the solar disc SDO HMI 2014-09-19 23:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.57 | 0.00 | 1.32 | 6.37 | 345.28 | 14.83 | 267.93 | 0.2556 | -746.0 | -552.9 | |
| 0.00 | 0.80 | 0.00 | 0.41 | 6.82 | 345.20 | 14.75 | 269.70 | 0.2539 | -544.0 | -461.1 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 6.71 | 344.95 | 14.49 | 269.22 | 0.2497 | -904.0 | -821.3 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 8.17 | 338.57 | 8.12 | 277.86 | 0.1418 | -801.0 | -598.5 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 7.46 | 328.00 | -2.45 | 82.11 | 0.0431 | 715.0 | 570.3 | |
| 0.00 | 1.51 | 0.00 | 0.75 | 7.58 | 327.39 | -3.06 | 81.41 | 0.0538 | 901.0 | 675.3 | |
| 0.00 | 1.33 | 0.00 | 0.66 | 8.00 | 327.05 | -3.40 | 75.35 | 0.0610 | 931.0 | 728.5 | |
| 0.00 | 0.89 | 0.00 | 0.44 | 7.57 | 326.93 | -3.52 | 82.50 | 0.0616 | 804.0 | 607.3 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 7.78 | 326.69 | -3.76 | 79.81 | 0.0664 | 817.0 | 606.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
