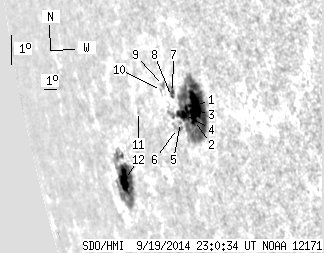

SDO HMI 2014-09-19 23:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.39 | 224.07 | 47.68 | 303.12 | -9.50 | 263.83 | -66.63 | 103.19 | 0.9298 | 150.0 | 64.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-19 23:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.00 | 136.50 | 16.60 | 164.00 | -8.22 | 266.78 | -63.67 | 102.48 | 0.9103 | 1016.9 | 245.7 | |
| 0.27 | -1.00 | 0.32 | -1.00 | -8.71 | 266.56 | -63.89 | 102.96 | 0.9126 | 742.0 | 999999 | |
| 0.89 | -1.00 | 1.08 | -1.00 | -8.39 | 266.10 | -64.36 | 102.51 | 0.9153 | 277.9 | 999999 | |
| 3.81 | -1.00 | 4.70 | -1.00 | -8.60 | 265.89 | -64.57 | 102.69 | 0.9170 | 375.7 | 999999 | |
| 0.00 | 1.60 | 0.00 | 2.00 | -8.89 | 265.50 | -64.95 | 102.92 | 0.9200 | -57.0 | -51.4 | |
| 0.00 | 3.90 | 0.00 | 4.94 | -9.11 | 265.20 | -65.25 | 103.09 | 0.9223 | -228.0 | -135.2 | |
| 1.06 | 6.47 | 1.34 | 8.15 | -8.00 | 265.21 | -65.24 | 101.90 | 0.9207 | 287.4 | 226.0 | |
| 0.62 | -7.00 | 0.78 | -7.00 | -8.14 | 265.09 | -65.36 | 102.02 | 0.9217 | 340.3 | 999999 | |
| 0.00 | 2.57 | 0.00 | 3.31 | -7.85 | 264.58 | -65.87 | 101.62 | 0.9246 | 172.0 | -9.7 | |
| 0.00 | 0.97 | 0.00 | 1.27 | -8.03 | 264.38 | -66.08 | 101.76 | 0.9262 | -89.0 | -79.4 | |
| 0.00 | 1.68 | 0.00 | 2.42 | -8.93 | 262.22 | -68.23 | 102.27 | 0.9403 | -242.0 | -244.4 | |
| 13.74 | 70.38 | 22.86 | 117.03 | -11.34 | 259.82 | -70.64 | 104.28 | 0.9558 | -528.4 | -192.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
