SDO HMI 2014-09-20 00:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.69 | 0.00 | 7.92 | 7.67 | 338.85 | 8.95 | 243.45 | 0.1731 | -465.9 | -353.9 | |
|
previous
or next observation for the same group /

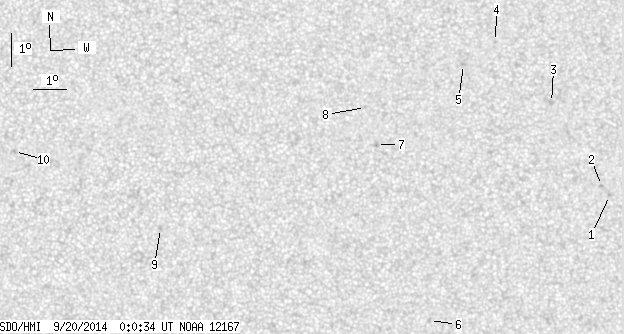

back to the solar disc SDO HMI 2014-09-20 00:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.59 | 6.38 | 345.26 | 15.36 | 268.12 | 0.2646 | -755.0 | -598.2 | |
| 0.00 | 1.60 | 0.00 | 0.82 | 6.69 | 345.02 | 15.12 | 269.26 | 0.2602 | -944.0 | -721.6 | |
| 0.00 | 2.39 | 0.00 | 1.22 | 9.24 | 343.54 | 13.64 | 279.81 | 0.2374 | -782.0 | -659.3 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 11.13 | 341.87 | 11.97 | 289.58 | 0.2169 | -709.0 | -562.0 | |
| 0.00 | 1.60 | 0.00 | 0.81 | 10.46 | 340.84 | 10.94 | 287.90 | 0.1970 | -752.0 | -619.3 | |
| 0.00 | 1.86 | 0.00 | 0.94 | 2.77 | 339.62 | 9.72 | 246.25 | 0.1850 | -822.0 | -579.0 | |
| 0.00 | 1.51 | 0.00 | 0.75 | 8.11 | 338.08 | 8.18 | 277.41 | 0.1427 | -806.0 | -696.7 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 9.23 | 337.77 | 7.87 | 285.62 | 0.1409 | -811.0 | -559.4 | |
| 0.00 | 1.33 | 0.00 | 0.66 | 5.66 | 331.47 | 1.57 | 226.80 | 0.0377 | 832.0 | 607.3 | |
| 0.00 | 2.13 | 0.00 | 1.06 | 7.97 | 327.05 | -2.85 | 73.21 | 0.0517 | 890.0 | 678.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
