SDO HMI 2014-09-20 01:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.37 | 0.00 | 7.22 | 8.77 | 336.71 | 7.36 | 225.43 | 0.1404 | -333.5 | -341.9 | |
|
previous
or next observation for the same group /

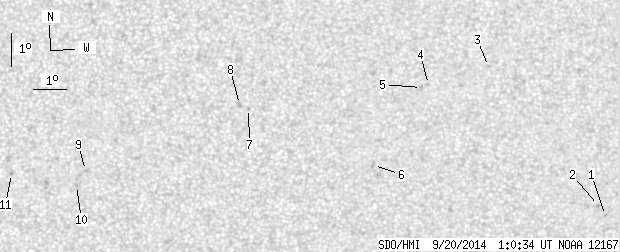

back to the solar disc SDO HMI 2014-09-20 01:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.64 | 6.39 | 345.28 | 15.93 | 268.28 | 0.2741 | -733.0 | -571.5 | |
| 0.00 | 1.24 | 0.00 | 0.64 | 6.70 | 345.07 | 15.72 | 269.38 | 0.2703 | -911.0 | -797.9 | |
| 0.00 | 0.98 | 0.00 | 0.50 | 10.99 | 341.78 | 12.43 | 288.37 | 0.2237 | -769.0 | -658.0 | |
| 0.00 | 0.89 | 0.00 | 0.45 | 10.49 | 339.89 | 10.54 | 288.67 | 0.1907 | -727.0 | -533.3 | |
| 0.00 | 1.42 | 0.00 | 0.72 | 10.41 | 339.67 | 10.32 | 288.57 | 0.1867 | -754.0 | -589.2 | |
| 0.00 | 1.77 | 0.00 | 0.89 | 8.09 | 338.12 | 8.77 | 276.89 | 0.1527 | -757.0 | -667.9 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 9.87 | 334.31 | 4.96 | 299.51 | 0.0984 | -880.0 | -683.6 | |
| 0.00 | 2.22 | 0.00 | 1.10 | 9.99 | 334.04 | 4.69 | 302.02 | 0.0954 | -900.0 | -692.9 | |
| 0.00 | 1.42 | 0.00 | 0.70 | 8.03 | 329.33 | -0.02 | 1.54 | 0.0159 | 862.0 | 578.1 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 7.58 | 329.05 | -0.30 | 33.10 | 0.0095 | 949.0 | 720.8 | |
| 0.00 | 0.98 | 0.00 | 0.48 | 7.94 | 327.08 | -2.27 | 70.05 | 0.0420 | 951.0 | 739.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
