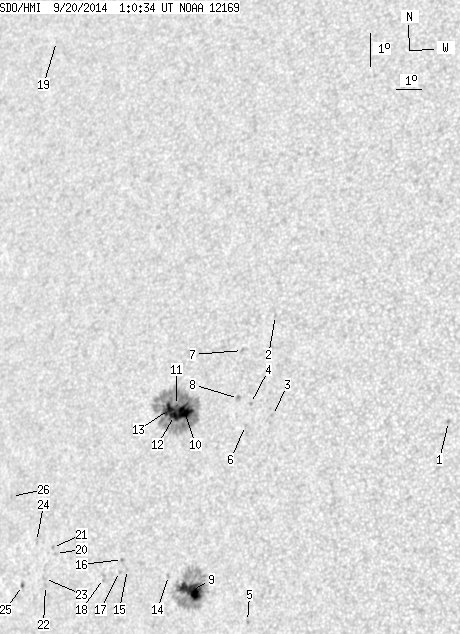

SDO HMI 2014-09-20 01:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.55 | 272.98 | 34.05 | 174.14 | 8.47 | 290.08 | -39.27 | 85.33 | 0.6313 | -560.7 | -270.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-20 01:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.51 | 0.00 | 0.86 | 10.96 | 299.89 | -29.46 | 80.29 | 0.4919 | -813.0 | -653.8 | |
| 0.00 | 1.42 | 0.00 | 0.87 | 13.74 | 293.14 | -36.21 | 76.43 | 0.5926 | -88.0 | -113.0 | |
| 0.00 | 1.33 | 0.00 | 0.81 | 10.73 | 293.49 | -35.86 | 81.51 | 0.5841 | -474.0 | -546.0 | |
| 0.00 | 1.33 | 0.00 | 0.82 | 11.03 | 292.61 | -36.74 | 81.07 | 0.5965 | -841.0 | -720.6 | |
| 0.00 | 1.42 | 0.00 | 0.87 | 4.48 | 293.15 | -36.20 | 92.18 | 0.5915 | 701.0 | 584.9 | |
| 0.00 | 1.06 | 0.00 | 0.66 | 10.36 | 292.51 | -36.84 | 82.21 | 0.5975 | -673.0 | -523.8 | |
| 0.00 | 1.60 | 0.00 | 0.99 | 12.60 | 292.06 | -37.29 | 78.52 | 0.6056 | -524.0 | -469.8 | |
| 0.00 | 2.93 | 0.00 | 1.81 | 11.15 | 292.13 | -37.22 | 80.92 | 0.6032 | -666.0 | -561.2 | |
| 23.40 | 92.29 | 14.75 | 58.18 | 5.25 | 290.97 | -38.38 | 90.56 | 0.6206 | -939.9 | -331.5 | |
| 15.16 | 148.14 | 9.65 | 94.72 | 10.60 | 290.10 | -39.25 | 81.94 | 0.6304 | -1182.5 | -335.9 | |
| 0.27 | -10.00 | 0.17 | -10.00 | 10.76 | 289.76 | -39.59 | 81.71 | 0.6350 | -794.7 | 999999 | |
| 5.59 | -10.00 | 3.57 | -10.00 | 10.45 | 289.73 | -39.62 | 82.19 | 0.6353 | -933.7 | 999999 | |
| 8.42 | -10.00 | 5.41 | -10.00 | 10.61 | 289.50 | -39.85 | 81.94 | 0.6384 | -777.4 | 999999 | |
| 0.00 | 1.68 | 0.00 | 1.08 | 5.63 | 290.04 | -39.31 | 89.83 | 0.6327 | -369.0 | -351.2 | |
| 0.00 | 0.98 | 0.00 | 0.64 | 5.69 | 288.41 | -40.94 | 89.56 | 0.6543 | 670.0 | 553.4 | |
| 0.00 | 1.33 | 0.00 | 0.87 | 5.97 | 288.19 | -41.16 | 89.10 | 0.6570 | 780.0 | 676.1 | |
| 0.00 | 1.24 | 0.00 | 0.81 | 5.60 | 288.10 | -41.25 | 89.65 | 0.6586 | 645.0 | 586.9 | |
| 0.00 | 2.75 | 0.00 | 1.82 | 5.34 | 287.47 | -41.88 | 89.97 | 0.6670 | 641.0 | 572.9 | |
| 0.00 | 0.71 | 0.00 | 0.53 | 21.31 | 281.63 | -47.72 | 67.69 | 0.7474 | -486.0 | -408.2 | |
| 0.00 | 0.98 | 0.00 | 0.67 | 5.92 | 285.43 | -43.92 | 88.88 | 0.6924 | 757.0 | 677.0 | |
| 0.00 | 1.42 | 0.00 | 0.97 | 6.09 | 285.28 | -44.07 | 88.62 | 0.6941 | 696.0 | 597.4 | |
| 0.00 | 1.68 | 0.00 | 1.16 | 4.93 | 285.09 | -44.26 | 90.27 | 0.6976 | 135.0 | 204.8 | |
| 0.00 | 1.86 | 0.00 | 1.28 | 5.13 | 285.03 | -44.32 | 89.97 | 0.6981 | 290.0 | 348.7 | |
| 0.00 | 1.95 | 0.00 | 1.35 | 6.21 | 284.59 | -44.76 | 88.38 | 0.7026 | 600.0 | 502.9 | |
| 0.71 | 2.22 | 0.50 | 1.55 | 4.84 | 284.12 | -45.23 | 90.27 | 0.7098 | 591.0 | 396.5 | |
| 0.00 | 1.15 | 0.00 | 0.82 | 7.47 | 283.36 | -45.99 | 86.51 | 0.7168 | 446.0 | 452.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
