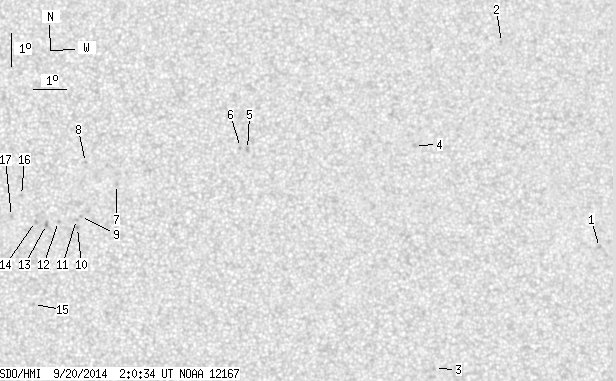

SDO HMI 2014-09-20 02:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 24.48 | 0.00 | 12.24 | 8.24 | 333.28 | 4.48 | 227.66 | 0.0975 | 373.7 | 197.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-20 02:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.39 | 0.00 | 1.23 | 6.67 | 345.12 | 16.32 | 269.40 | 0.2803 | -853.0 | -635.4 | |
| 0.00 | 1.51 | 0.00 | 0.77 | 12.95 | 342.31 | 13.51 | 294.72 | 0.2518 | 592.0 | 492.5 | |
| 0.00 | 1.42 | 0.00 | 0.72 | 3.18 | 339.90 | 11.10 | 250.95 | 0.2043 | -220.0 | -200.4 | |
| 0.00 | 1.51 | 0.00 | 0.76 | 9.91 | 339.44 | 10.64 | 285.60 | 0.1897 | -909.0 | -729.9 | |
| 0.00 | 2.66 | 0.00 | 1.33 | 9.89 | 334.28 | 5.48 | 297.39 | 0.1065 | -998.0 | -719.1 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 9.95 | 334.07 | 5.27 | 298.84 | 0.1038 | -914.0 | -763.5 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 8.87 | 330.27 | 1.47 | 320.29 | 0.0398 | 787.0 | 643.6 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 9.53 | 329.32 | 0.52 | 347.88 | 0.0432 | 738.0 | 530.3 | |
| 0.00 | 0.98 | 0.00 | 0.48 | 7.91 | 329.17 | 0.37 | 335.04 | 0.0152 | 899.0 | 684.5 | |
| 0.00 | 1.60 | 0.00 | 0.79 | 7.58 | 329.08 | 0.28 | 328.81 | 0.0093 | 1061.0 | 812.7 | |
| 0.00 | 1.33 | 0.00 | 0.66 | 7.82 | 329.05 | 0.25 | 340.59 | 0.0129 | 849.0 | 678.3 | |
| 0.00 | 1.24 | 0.00 | 0.61 | 7.76 | 328.50 | -0.30 | 25.13 | 0.0123 | 889.0 | 710.0 | |
| 0.00 | 1.60 | 0.00 | 0.79 | 7.67 | 328.14 | -0.66 | 50.43 | 0.0150 | 1102.0 | 974.7 | |
| 0.00 | 1.51 | 0.00 | 0.75 | 7.76 | 327.80 | -1.00 | 57.32 | 0.0206 | 861.0 | 722.4 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 5.26 | 327.74 | -1.06 | 150.53 | 0.0375 | 835.0 | 674.5 | |
| 0.00 | 1.33 | 0.00 | 0.66 | 8.54 | 327.37 | -1.43 | 44.84 | 0.0351 | 742.0 | 596.7 | |
| 0.00 | 0.89 | 0.00 | 0.44 | 7.91 | 327.07 | -1.73 | 65.33 | 0.0330 | 892.0 | 717.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
