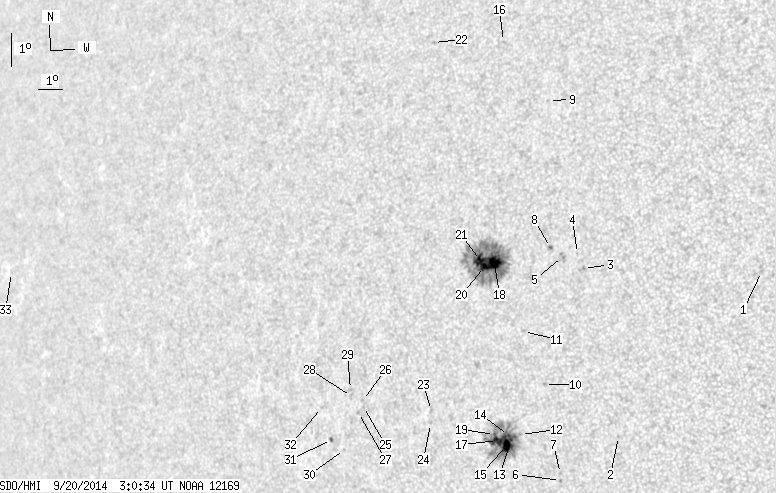

SDO HMI 2014-09-20 03:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.63 | 279.34 | 27.38 | 175.58 | 8.60 | 290.10 | -38.16 | 85.15 | 0.6160 | -504.0 | -312.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-20 03:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.60 | 0.00 | 0.90 | 10.99 | 299.87 | -28.38 | 80.03 | 0.4757 | -791.0 | -658.3 | |
| 0.00 | 1.06 | 0.00 | 0.63 | 5.72 | 295.25 | -33.00 | 90.48 | 0.5441 | 494.0 | 401.0 | |
| 0.00 | 1.24 | 0.00 | 0.75 | 10.68 | 293.49 | -34.76 | 81.50 | 0.5687 | -846.0 | -684.4 | |
| 0.00 | 0.27 | 0.00 | 0.16 | 11.11 | 293.20 | -35.05 | 80.76 | 0.5731 | -683.0 | -691.3 | |
| 0.00 | 3.37 | 0.00 | 2.05 | 10.99 | 292.66 | -35.59 | 81.04 | 0.5806 | -831.0 | -691.7 | |
| 0.00 | 0.98 | 0.00 | 0.59 | 4.25 | 293.21 | -35.04 | 92.77 | 0.5754 | 713.0 | 587.3 | |
| 0.00 | 1.24 | 0.00 | 0.75 | 4.46 | 293.20 | -35.05 | 92.40 | 0.5752 | 712.0 | 587.2 | |
| 0.00 | 2.22 | 0.00 | 1.35 | 11.22 | 292.17 | -36.08 | 80.68 | 0.5876 | -766.0 | -622.2 | |
| 0.00 | 1.06 | 0.00 | 0.66 | 15.64 | 291.31 | -36.94 | 73.43 | 0.6060 | -364.0 | -344.8 | |
| 0.00 | 1.33 | 0.00 | 0.81 | 7.10 | 292.42 | -35.83 | 87.75 | 0.5836 | -704.0 | -536.3 | |
| 0.00 | 1.42 | 0.00 | 0.87 | 8.63 | 291.47 | -36.78 | 85.11 | 0.5963 | -400.0 | -376.8 | |
| 0.00 | 1.51 | 0.00 | 0.93 | 5.53 | 291.64 | -36.61 | 90.33 | 0.5958 | -381.0 | -337.5 | |
| 0.27 | 90.27 | 0.16 | 56.06 | 5.35 | 291.31 | -36.94 | 90.58 | 0.6006 | -1143.3 | -420.6 | |
| 1.24 | -13.00 | 0.77 | -13.00 | 5.47 | 291.19 | -37.06 | 90.38 | 0.6022 | -933.0 | 999999 | |
| 7.27 | -13.00 | 4.51 | -13.00 | 5.16 | 291.14 | -37.12 | 90.88 | 0.6033 | -1162.6 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.40 | 17.30 | 289.13 | -39.12 | 71.36 | 0.6380 | -600.0 | -541.4 | |
| 5.05 | -13.00 | 3.15 | -13.00 | 5.28 | 290.78 | -37.47 | 90.62 | 0.6080 | -759.8 | 999999 | |
| 14.72 | 156.69 | 9.23 | 98.70 | 10.62 | 290.10 | -38.15 | 81.85 | 0.6157 | -1196.3 | -328.9 | |
| 0.27 | -13.00 | 0.17 | -13.00 | 5.46 | 290.66 | -37.59 | 90.33 | 0.6095 | -515.3 | 999999 | |
| 5.23 | -18.00 | 3.30 | -18.00 | 10.47 | 289.73 | -38.52 | 82.11 | 0.6206 | -960.9 | 999999 | |
| 8.96 | -18.00 | 5.66 | -18.00 | 10.64 | 289.55 | -38.71 | 81.85 | 0.6231 | -804.8 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.65 | 17.05 | 286.29 | -41.96 | 72.40 | 0.6730 | -606.0 | -536.3 | |
| 0.00 | 2.04 | 0.00 | 1.32 | 5.99 | 288.16 | -40.09 | 89.18 | 0.6428 | 744.0 | 586.0 | |
| 0.00 | 0.53 | 0.00 | 0.34 | 5.60 | 288.15 | -40.10 | 89.79 | 0.6433 | 617.0 | 511.5 | |
| 0.00 | 0.89 | 0.00 | 0.60 | 5.89 | 285.41 | -42.84 | 89.04 | 0.6788 | 789.0 | 670.0 | |
| 0.00 | 1.06 | 0.00 | 0.72 | 6.07 | 285.35 | -42.90 | 88.77 | 0.6793 | 670.0 | 544.0 | |
| 0.00 | 1.51 | 0.00 | 1.02 | 5.69 | 285.22 | -43.03 | 89.31 | 0.6814 | 503.0 | 469.5 | |
| 0.00 | 2.13 | 0.00 | 1.44 | 6.15 | 284.89 | -43.36 | 88.60 | 0.6852 | 427.0 | 469.0 | |
| 0.00 | 1.15 | 0.00 | 0.78 | 6.35 | 284.82 | -43.43 | 88.30 | 0.6858 | 616.0 | 476.2 | |
| 0.00 | 0.80 | 0.00 | 0.54 | 4.53 | 284.74 | -43.52 | 90.94 | 0.6888 | 579.0 | 502.1 | |
| 0.62 | 1.86 | 0.43 | 1.28 | 4.79 | 284.17 | -44.08 | 90.49 | 0.6956 | 608.4 | 472.2 | |
| 0.00 | 0.71 | 0.00 | 0.49 | 5.71 | 283.66 | -44.59 | 89.11 | 0.7009 | 495.0 | 410.1 | |
| 0.00 | 0.80 | 0.00 | 0.79 | 8.25 | 267.63 | -60.62 | 84.56 | 0.8683 | 388.0 | 335.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
