SDO HMI 2014-09-20 03:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.22 | 258.75 | 71.32 | 320.46 | -9.50 | 263.78 | -64.47 | 103.67 | 0.9158 | 125.1 | 67.9 | |
|
previous
or next observation for the same group /

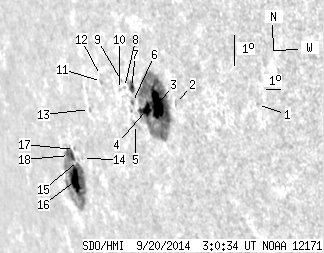

back to the solar disc SDO HMI 2014-09-20 03:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.42 | 0.00 | 1.29 | -7.63 | 272.92 | -55.33 | 103.90 | 0.8419 | 393.0 | 272.6 | |
| 0.00 | 1.24 | 0.00 | 1.30 | -8.11 | 268.10 | -60.15 | 103.19 | 0.8838 | 502.0 | 459.6 | |
| 21.64 | 150.30 | 23.67 | 165.57 | -8.28 | 266.93 | -61.32 | 103.08 | 0.8932 | 875.0 | 247.3 | |
| 7.36 | -3.00 | 8.26 | -3.00 | -8.52 | 266.15 | -62.10 | 103.16 | 0.8994 | 417.9 | 999999 | |
| 0.00 | 5.32 | 0.00 | 6.19 | -9.09 | 265.24 | -63.01 | 103.56 | 0.9069 | -272.0 | -148.6 | |
| 0.53 | 1.77 | 0.62 | 2.06 | -8.40 | 265.25 | -63.00 | 102.82 | 0.9058 | 172.5 | 95.1 | |
| 3.10 | 6.03 | 3.57 | 6.94 | -7.93 | 265.32 | -62.93 | 102.33 | 0.9046 | 450.8 | 285.1 | |
| 0.00 | 0.80 | 0.00 | 0.94 | -7.98 | 264.83 | -63.42 | 102.28 | 0.9082 | 197.0 | 143.8 | |
| 0.00 | 0.98 | 0.00 | 1.15 | -7.78 | 264.68 | -63.57 | 102.03 | 0.9089 | 106.0 | 49.6 | |
| 0.00 | 1.06 | 0.00 | 1.27 | -8.09 | 264.45 | -63.80 | 102.31 | 0.9110 | -193.0 | -201.1 | |
| 0.00 | 1.68 | 0.00 | 2.10 | -7.98 | 263.20 | -65.05 | 101.92 | 0.9194 | -531.0 | -467.1 | |
| 0.00 | 0.27 | 0.00 | 0.33 | -7.80 | 263.18 | -65.07 | 101.72 | 0.9192 | -471.0 | -447.3 | |
| 0.00 | 0.80 | 0.00 | 1.06 | -8.99 | 261.96 | -66.29 | 102.73 | 0.9287 | -280.0 | -236.4 | |
| 0.00 | 0.89 | 0.00 | 1.26 | -10.67 | 260.72 | -67.54 | 104.22 | 0.9384 | -440.0 | -438.0 | |
| 0.00 | 1.06 | 0.00 | 1.53 | -10.77 | 260.34 | -67.91 | 104.25 | 0.9407 | -639.0 | -570.5 | |
| 15.70 | 83.71 | 23.46 | 125.41 | -11.47 | 259.74 | -68.51 | 104.85 | 0.9449 | -462.3 | -148.3 | |
| 0.00 | 1.42 | 0.00 | 2.06 | -10.45 | 260.16 | -68.09 | 103.88 | 0.9413 | -523.0 | -486.6 | |
| 7.89 | -16.00 | 11.74 | -16.00 | -10.70 | 259.62 | -68.63 | 104.03 | 0.9446 | -209.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
