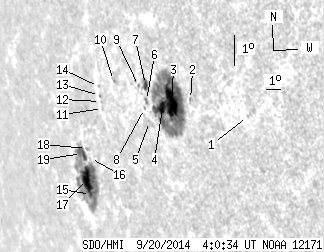

SDO HMI 2014-09-20 04:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.98 | 261.26 | 72.07 | 318.83 | -9.55 | 263.64 | -64.06 | 103.82 | 0.9130 | 177.7 | 42.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-20 04:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.25 | -8.22 | 271.43 | -56.27 | 104.31 | 0.8516 | 500.0 | 487.0 | |
| 0.00 | 1.33 | 0.00 | 1.37 | -8.04 | 268.18 | -59.52 | 103.26 | 0.8787 | 460.0 | 470.5 | |
| 26.16 | 150.76 | 28.06 | 162.91 | -8.27 | 266.95 | -60.75 | 103.21 | 0.8888 | 868.8 | 220.3 | |
| 7.36 | -3.00 | 8.08 | -3.00 | -8.50 | 266.32 | -61.38 | 103.30 | 0.8940 | 471.1 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.91 | -9.04 | 265.31 | -62.39 | 103.66 | 0.9024 | -190.0 | -181.6 | |
| 0.00 | 2.48 | 0.00 | 2.82 | -8.39 | 265.31 | -62.40 | 102.95 | 0.9014 | 290.0 | 133.3 | |
| 3.37 | 5.85 | 3.80 | 6.60 | -7.89 | 265.38 | -62.32 | 102.42 | 0.9000 | 439.8 | 283.0 | |
| 0.00 | 0.98 | 0.00 | 1.12 | -8.66 | 265.09 | -62.61 | 103.20 | 0.9034 | -7.0 | 14.4 | |
| 0.00 | 0.89 | 0.00 | 1.02 | -7.97 | 264.89 | -62.81 | 102.40 | 0.9038 | 243.0 | 160.9 | |
| 0.00 | 1.42 | 0.00 | 1.74 | -8.02 | 263.15 | -64.56 | 102.06 | 0.9161 | -591.0 | -438.8 | |
| 0.00 | 1.33 | 0.00 | 1.72 | -9.01 | 262.01 | -65.69 | 102.88 | 0.9250 | -350.0 | -286.5 | |
| 0.00 | 1.06 | 0.00 | 1.37 | -8.81 | 261.94 | -65.77 | 102.65 | 0.9252 | -306.0 | -358.9 | |
| 0.00 | 0.62 | 0.00 | 0.80 | -8.62 | 261.92 | -65.78 | 102.45 | 0.9250 | -376.0 | -319.3 | |
| 0.00 | 0.80 | 0.00 | 1.03 | -8.34 | 261.95 | -65.76 | 102.15 | 0.9245 | -363.0 | -324.4 | |
| 0.27 | 90.63 | 0.39 | 132.29 | -11.96 | 259.76 | -67.94 | 105.49 | 0.9423 | -574.7 | -154.4 | |
| 0.00 | 0.89 | 0.00 | 1.25 | -10.76 | 260.36 | -67.34 | 104.37 | 0.9374 | -582.0 | -572.3 | |
| 14.37 | -15.00 | 20.95 | -15.00 | -11.50 | 259.67 | -68.03 | 104.99 | 0.9422 | -453.6 | 999999 | |
| 0.00 | 1.15 | 0.00 | 1.63 | -10.47 | 260.17 | -67.53 | 104.02 | 0.9381 | -604.0 | -528.4 | |
| 7.45 | -15.00 | 10.79 | -15.00 | -10.69 | 259.66 | -68.04 | 104.14 | 0.9413 | -220.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
