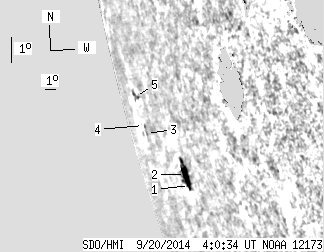

SDO HMI 2014-09-20 04:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.19 | 24.30 | 16.80 | 67.06 | -14.62 | 250.45 | -77.25 | 106.38 | 0.9836 | 154.9 | -103.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-20 04:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.98 | 17.38 | 2.28 | 40.76 | -15.51 | 252.65 | -75.05 | 107.65 | 0.9779 | 276.3 | 140.5 | |
| 6.21 | -1.00 | 14.52 | -1.00 | -15.18 | 252.51 | -75.19 | 107.29 | 0.9782 | 245.4 | 999999 | |
| 0.00 | 1.24 | 0.00 | 4.58 | -14.49 | 247.53 | -80.17 | 105.74 | 0.9917 | -261.0 | -196.6 | |
| 0.00 | 0.89 | 0.00 | 3.33 | -14.27 | 247.31 | -80.39 | 105.48 | 0.9921 | -393.0 | -347.2 | |
| 0.00 | 4.79 | 0.00 | 18.39 | -13.38 | 247.12 | -80.58 | 104.56 | 0.9922 | -472.0 | -353.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
