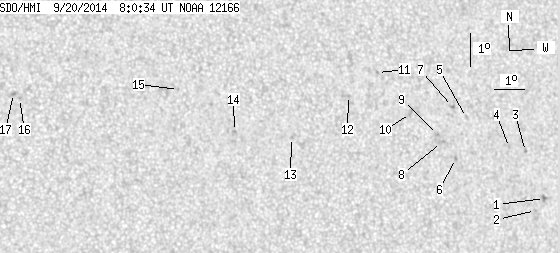

SDO HMI 2014-09-20 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 26.25 | 0.00 | 14.69 | 13.23 | 352.52 | 27.01 | 286.18 | 0.4604 | -326.7 | -394.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-20 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.93 | 0.00 | 1.71 | 11.00 | 357.65 | 32.14 | 279.42 | 0.5314 | -1000.0 | -709.7 | |
| 0.00 | 1.24 | 0.00 | 0.72 | 10.66 | 357.29 | 31.77 | 278.82 | 0.5257 | -874.0 | -694.7 | |
| 0.00 | 0.98 | 0.00 | 0.57 | 12.46 | 357.15 | 31.64 | 282.26 | 0.5263 | -730.0 | -628.8 | |
| 0.00 | 0.89 | 0.00 | 0.51 | 12.62 | 356.60 | 31.08 | 282.69 | 0.5185 | -748.0 | -560.2 | |
| 0.00 | 1.42 | 0.00 | 0.81 | 13.62 | 355.19 | 29.68 | 285.03 | 0.5003 | -413.0 | -378.9 | |
| 0.00 | 1.86 | 0.00 | 1.06 | 12.40 | 354.64 | 29.13 | 282.76 | 0.4894 | -930.0 | -693.7 | |
| 0.00 | 1.77 | 0.00 | 1.01 | 13.98 | 354.74 | 29.23 | 285.90 | 0.4947 | -818.0 | -685.3 | |
| 0.00 | 2.93 | 0.00 | 1.66 | 12.92 | 354.21 | 28.70 | 283.93 | 0.4842 | -702.0 | -747.5 | |
| 0.00 | 1.15 | 0.00 | 0.65 | 13.17 | 354.10 | 28.59 | 284.48 | 0.4832 | -818.0 | -744.6 | |
| 0.00 | 3.10 | 0.00 | 1.74 | 13.85 | 353.24 | 27.73 | 286.21 | 0.4724 | -816.0 | -676.5 | |
| 0.00 | 0.98 | 0.00 | 0.54 | 15.16 | 352.26 | 26.75 | 289.39 | 0.4624 | -785.0 | -637.2 | |
| 0.00 | 1.06 | 0.00 | 0.59 | 14.52 | 351.17 | 25.66 | 288.58 | 0.4440 | -765.0 | -631.2 | |
| 0.00 | 0.89 | 0.00 | 0.48 | 13.35 | 349.09 | 23.57 | 286.98 | 0.4086 | 745.0 | 445.6 | |
| 0.00 | 1.15 | 0.00 | 0.62 | 13.62 | 347.20 | 21.69 | 288.76 | 0.3809 | 779.0 | 574.7 | |
| 0.00 | 0.80 | 0.00 | 0.42 | 14.97 | 345.47 | 19.96 | 293.61 | 0.3614 | 702.0 | 592.6 | |
| 0.00 | 1.06 | 0.00 | 0.55 | 14.89 | 340.27 | 14.75 | 299.53 | 0.2841 | 721.0 | 632.0 | |
| 0.00 | 2.04 | 0.00 | 1.05 | 15.05 | 340.08 | 14.57 | 300.32 | 0.2827 | 898.0 | 707.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
