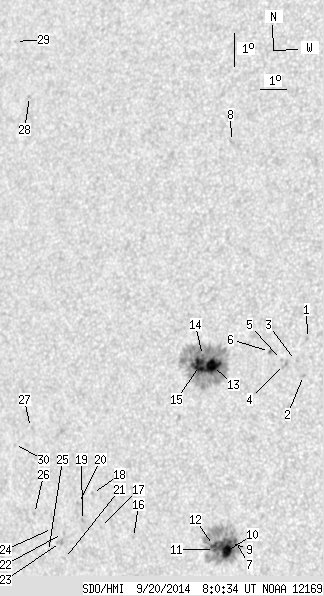

SDO HMI 2014-09-20 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.35 | 291.50 | 26.83 | 177.04 | 8.58 | 290.07 | -35.45 | 85.22 | 0.5789 | -539.0 | -306.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-20 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.86 | 0.00 | 1.09 | 11.72 | 293.48 | -32.03 | 79.22 | 0.5307 | -732.0 | -561.2 | |
| 0.00 | 1.24 | 0.00 | 0.72 | 10.60 | 293.47 | -32.04 | 81.33 | 0.5295 | -809.0 | -697.1 | |
| 0.00 | 0.53 | 0.00 | 0.31 | 11.03 | 293.13 | -32.38 | 80.56 | 0.5349 | -690.0 | -694.3 | |
| 0.00 | 3.46 | 0.00 | 2.03 | 10.88 | 292.75 | -32.76 | 80.88 | 0.5403 | -739.0 | -670.2 | |
| 0.00 | 1.24 | 0.00 | 0.73 | 11.03 | 292.62 | -32.89 | 80.64 | 0.5423 | -606.0 | -504.5 | |
| 0.35 | 1.60 | 0.21 | 0.94 | 11.24 | 292.15 | -33.36 | 80.31 | 0.5493 | -690.5 | -607.3 | |
| 1.15 | 104.74 | 0.69 | 62.88 | 5.45 | 291.47 | -34.05 | 90.80 | 0.5595 | -963.8 | -371.3 | |
| 0.00 | 2.13 | 0.00 | 1.31 | 17.48 | 289.61 | -35.90 | 70.09 | 0.5970 | -656.0 | -513.6 | |
| 0.27 | -7.00 | 0.16 | -7.00 | 5.41 | 291.28 | -34.23 | 90.85 | 0.5622 | -988.7 | 999999 | |
| 8.51 | -7.00 | 5.10 | -7.00 | 5.13 | 291.16 | -34.36 | 91.33 | 0.5644 | -1126.2 | 999999 | |
| 0.80 | -7.00 | 0.48 | -7.00 | 5.15 | 290.71 | -34.80 | 91.21 | 0.5707 | -747.8 | 999999 | |
| 2.31 | -7.00 | 1.39 | -7.00 | 5.27 | 290.67 | -34.84 | 90.99 | 0.5712 | -676.2 | 999999 | |
| 16.94 | 158.12 | 10.26 | 96.14 | 10.65 | 290.11 | -35.40 | 81.58 | 0.5777 | -1162.8 | -336.2 | |
| 0.27 | -13.00 | 0.16 | -13.00 | 10.95 | 289.69 | -35.82 | 81.09 | 0.5838 | -726.3 | 999999 | |
| 13.75 | -13.00 | 8.38 | -13.00 | 10.64 | 289.62 | -35.89 | 81.63 | 0.5846 | -875.6 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.50 | 5.30 | 287.65 | -37.86 | 90.52 | 0.6134 | 682.0 | 513.8 | |
| 0.00 | 0.53 | 0.00 | 0.34 | 5.53 | 286.36 | -39.15 | 89.98 | 0.6307 | 558.0 | 471.7 | |
| 0.00 | 1.15 | 0.00 | 0.74 | 6.50 | 285.96 | -39.55 | 88.41 | 0.6352 | 656.0 | 560.6 | |
| 0.00 | 1.33 | 0.00 | 0.86 | 5.66 | 285.64 | -39.87 | 89.70 | 0.6402 | 682.0 | 505.9 | |
| 0.00 | 1.86 | 0.00 | 1.20 | 6.15 | 285.44 | -40.07 | 88.90 | 0.6425 | 653.0 | 574.6 | |
| 0.00 | 0.98 | 0.00 | 0.63 | 4.46 | 285.01 | -40.50 | 91.47 | 0.6500 | 651.0 | 572.2 | |
| 0.00 | 0.53 | 0.00 | 0.35 | 5.20 | 284.88 | -40.63 | 90.30 | 0.6508 | 592.0 | 561.3 | |
| 0.00 | 3.64 | 0.00 | 2.37 | 4.93 | 284.82 | -40.69 | 90.72 | 0.6519 | 719.0 | 579.6 | |
| 0.00 | 0.89 | 0.00 | 0.58 | 5.32 | 284.47 | -41.04 | 90.07 | 0.6561 | 551.0 | 446.4 | |
| 0.00 | 0.62 | 0.00 | 0.41 | 4.62 | 284.36 | -41.15 | 91.13 | 0.6583 | 392.0 | 469.1 | |
| 0.00 | 0.98 | 0.00 | 0.65 | 5.71 | 283.71 | -41.80 | 89.39 | 0.6656 | 286.0 | 394.7 | |
| 0.00 | 0.35 | 0.00 | 0.24 | 8.28 | 283.26 | -42.25 | 85.50 | 0.6697 | 498.0 | 422.0 | |
| 0.00 | 1.24 | 0.00 | 0.87 | 18.22 | 281.01 | -44.50 | 71.21 | 0.7055 | -345.0 | -322.7 | |
| 0.00 | 0.62 | 0.00 | 0.44 | 19.83 | 279.82 | -45.69 | 69.22 | 0.7223 | -236.0 | -337.0 | |
| 0.00 | 1.06 | 0.00 | 0.71 | 7.72 | 282.67 | -42.84 | 86.31 | 0.6775 | 502.0 | 428.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
